200毫安低压差线性稳压器,具有引脚可选双电压电平输出 200mA Low-Dropout Linear Regulator with Pin-Selectable Dual-Voltage Level Output

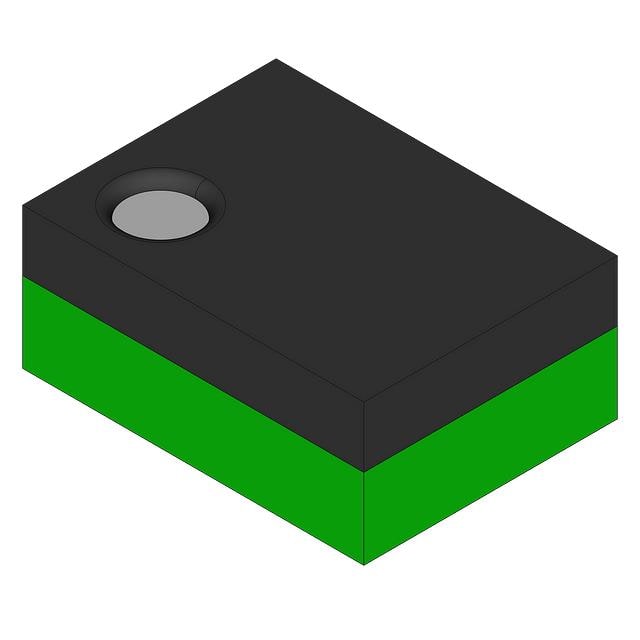

PMIC - 稳压器 - 线性 正 固定 1 输出 200mA 5-DSBGA(1x1.37)
立创商城:
TPS728185295YZUR
德州仪器TI:
200-mA, low-dropout voltage regulator with low-IQ & enable
得捷:
IC REG LIN 1.85/2.95V 5DSBGA
贸泽:
LDO Voltage Regulators Sgl Output LDO,200mA Dual Level Fixed
艾睿:
Maintain a steady voltage level with this LDO TPS728185295YZUR linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.23@200mA V. This device has a maximum power dissipation of 370 mW. It has an overall accuracy of ±2.5 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. Use this part at voltages between 2.7 V and 6.5 V. With a fixed output that has a voltage of 1.85|2.95 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 75uV/mATyp and line regulation of 130uV/VTyp. Its maximum power dissipation is 370 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum dropout voltage is 0.4@200mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
Chip1Stop:
LDO Regulator Pos 1.85V2.95V 0.2A 5-Pin DSBGA T/R
Verical:
LDO Regulator Pos 1.85V2.95V 0.2A 5-Pin DSBGA T/R
输出接口数 1
输出电流 200 mA
供电电流 80µA ~ 120µA
耗散功率 0.37 W
静态电流 50.0 µA
输出电容类型 Ceramic
跌落电压 0.23V @200mA
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min 40 ℃
耗散功率Max 370 mW
精度 ±2.5 %
输入电压 6.5 V
安装方式 Surface Mount
引脚数 5
封装 DSBGA-5
封装 DSBGA-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS728185295YZUR TI 德州仪器 | 当前型号 | 当前型号 |
TPS728185295YZUT 德州仪器 | 功能相似 | TPS728185295YZUR和TPS728185295YZUT的区别 |
