TPS79733QDCKRQ1

超低功耗SC70 / SOT- 223 PACKAGED 10MA LDO线性的POWER GOOD OUPUT稳压器 ULTRALOW-POWER SC70/SOT-223 PACKAGED 10MA LDO LINEAR REGULATORS WITH POWER GOOD OUPUT

DESCRIPON

The TPS797xx family of low-dropout LDO voltage regulators offers the benefits of low-dropout voltage and ultralow-power operation. The device is stable with any capacitor >0.47µF. Therefore, implementations of this device require little board space due to the  miniaturized packaging and potentially small output capacitor. In addition, the family includes an integrated open drain active-high power good PG output. Intended for use in microcontroller based, battery-powered applications, the TPS797xx family’s low dropout and ultralow-powered operation results in

a significant increase in system battery operating life. The small packaging minimizes consumption of board space.

FEATURES

Qualification in Accordance With AEC-Q100†

Qualified for Automotive Applications

Customer-Specific Configuration Control Can Be Supported Along With Major-Change Approval

10-mA Low-Dropout Regulator

Ultralow 1.2-µA Quiescent Current at 10 mA

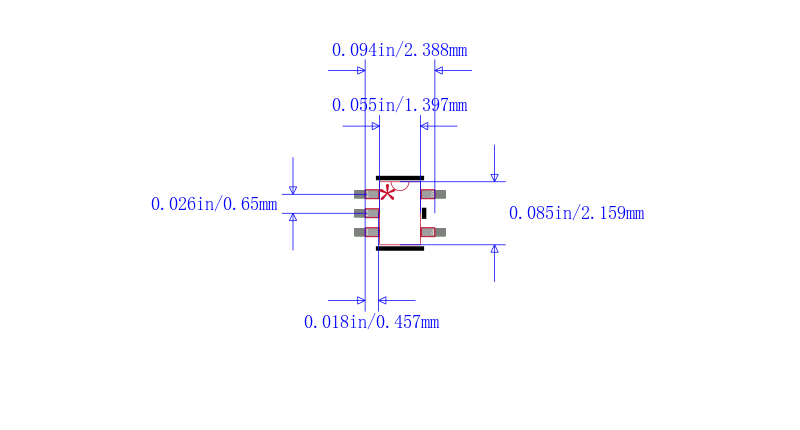

5-Pin SC70/SOT-323 DCK Package

Integrated Power Good Output

Stable With Any Capacitor >0.47 µF

Dropout Voltage Typically 105 mV at 10 mA TPS79733

Over Current Limitation

−40°C to 125°C Operating Junction Temperature Range

†Contact Texas Instruments for details. Q100 qualification data available on request.

APPLICATIONS

Battery Powered Microcontrollers and Microprocessors
