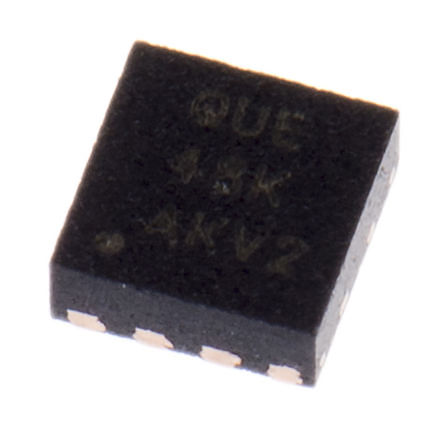

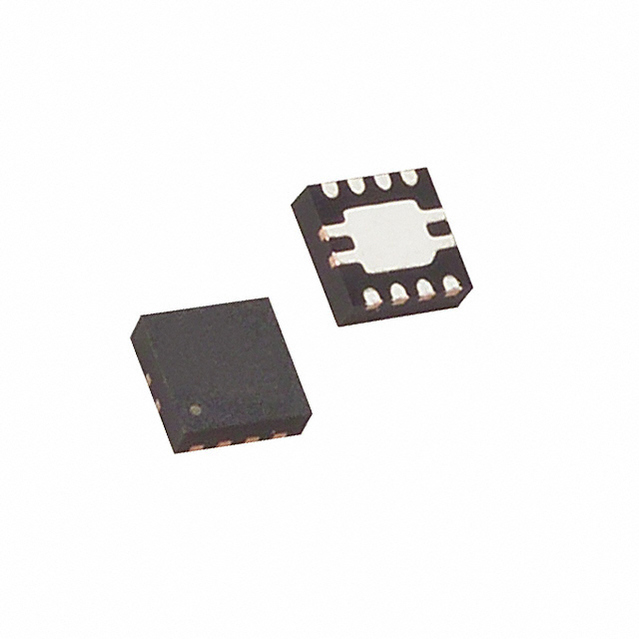

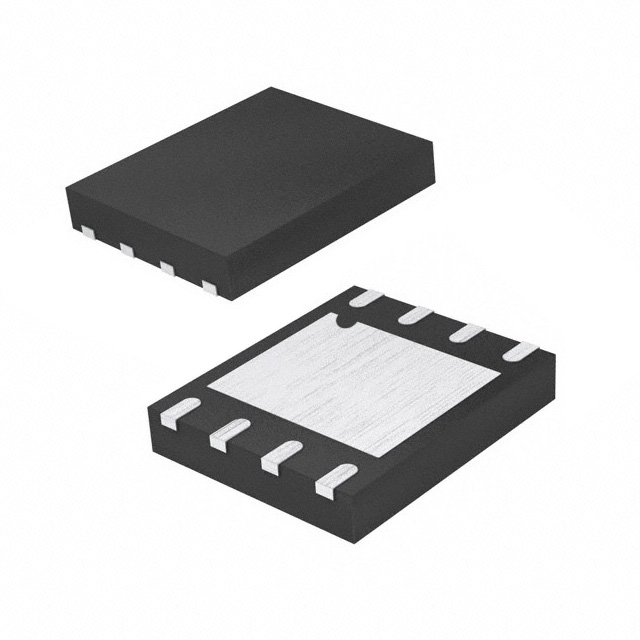

TEXAS INSTRUMENTS TPS73501DRBT 电压稳压器, LDO, 可调, 2.7V至6.5V输入, 280mV压差, 1.25V至6V/0.5A输出, SON-8
LDO(低压降)线性稳压器,500mA,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR POS ADJ 500MA 8SON
立创商城:
TPS73501DRBT
欧时:
Texas Instruments TPS73501DRBT LDO 稳压器, 可调输出, 1.25 → 6.2 V输出, 500mA最大输出, ±3%精确度
德州仪器TI:
500-mA, low-IQ, low-dropout voltage regulator with enable
e络盟:
电压稳压器, LDO, 可调, 2.7V至6.5V输入, 280mV压差, 1.25V至6V/0.5A输出, SON-8
艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO TPS73501DRBT linear regulator from Texas Instruments is perfect for you! Its typical dropout voltage at current is 0.28@500mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.5 A. With a small input voltage of 2.7 V and a max of 6.5 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 1.25 to 6 V, this is power management at its best. Using a load regulation of 0.005%/mATyp and line regulation of 0.02%/VTyp is needed for a programmable DC power supply. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. The maximum dropout voltage is 0.5@500mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.25V to 6V 0.5A 8-Pin VSON EP T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 500mA, Adjustable, Low Quiescent Current, Low Noise, High PSRR LDO Regulator Pos 1.25V to 6V 0.5A 8-Pin VSON EP T/R
Verical:
LDO Regulator Pos 1.25V to 6V 0.5A 8-Pin VSON EP T/R
Newark:
# TEXAS INSTRUMENTS TPS73501DRBT LDO Voltage Regulator, Adjustable, 2.7V to 6.5V in, 280mV drop, 1.25V to 6V/500mA out, SON-8
DeviceMart:
IC REG LDO ADJ .5A 8-SON
输出接口数 1
输出电压 1.25V ~ 6V
输出电流 500 mA
供电电流 65 µA
针脚数 8
耗散功率 2500 W
静态电流 46 µA
输出电容类型 Ceramic
跌落电压 280 mV
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电压Max 6 V
输出电压Min 1.25 V
输出电流Max 500 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 2.5 W
精度 2 %
输入电压 2.7V ~ 6.5V
安装方式 Surface Mount
引脚数 8
封装 SON-8
长度 3.15 mm
宽度 3.15 mm
高度 0.95 mm
封装 SON-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73501DRBT TI 德州仪器 | 当前型号 | 当前型号 |
TPS73501DRBR 德州仪器 | 类似代替 | TPS73501DRBT和TPS73501DRBR的区别 |
