TPS780330220DDCTG4

150mA，低压降稳压器，超低功耗， IQ 500nA的与引脚可选，双电平输出电压 150mA, Low-Dropout Regulator, Ultralow-Power, IQ 500nA with Pin-Selectable, Dual-Level Output Voltage

DESCRIPON

The TPS780 family of low-dropout LDO regulators offer the benefits of ultralow power IQ = 500nA, miniaturized packaging 2×2 SON-6, and selectable dual-level output voltage levels. An adjustable version is also available, but does not have the capability to shift voltage levels.

The VSET pin allows the end user to switch between two voltage levels on-the-fly through a

microprocessor-compatible input. This LDO is designed specifically for battery-powered  applications where dual-level voltages are needed. With ultralow IQ 500nA, microprocessors, memory cards, and smoke detectors are ideal applications for this device.

FEATURES

• Low IQ : 500nA

• 150mA, Low-Dropout Regulator with Pin-Selectable Dual Voltage Level Output

• Low Dropout: 200mV at 150mA

• 3% Accuracy Over Load/Line/Temperature

• Available in Dual-Level, Fixed Output Voltages from 1.5V to 4.2V Using Innovative Factory

EPROM Programming

• Available in an Adjustable Version from 1.22V to 5.25V or a Dual-Level Output Version

• VSET Pin Toggles Output Voltage Between Two Factory-Programmed Voltage Levels

• Stable with a 1.0µF Ceramic Capacitor

• Thermal Shutdown and Overcurrent Protection

• CMOS Logic Level-Compatible Enable Pin

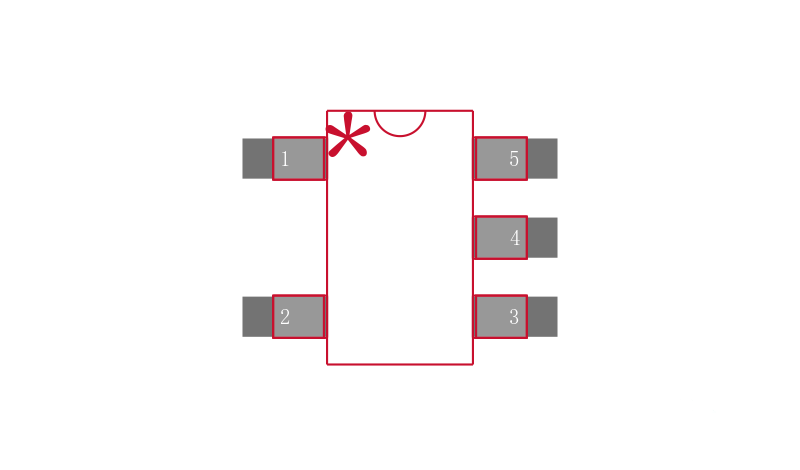

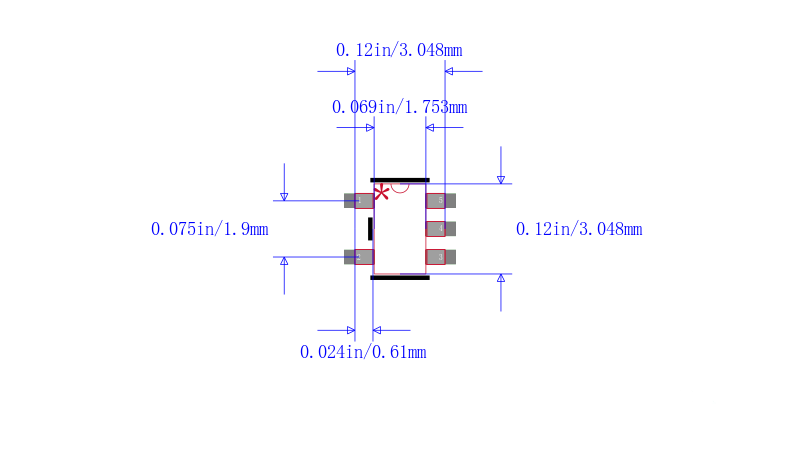

• Available in DDC TSOT23-5 or DRV 2mm × 2mm SON-6 Package Options

APPLICATIONS

• TI MSP430 Attach Applications

• Power Rails with Programming Mode

• Dual Voltage Levels for Power-Saving Mode

• Wireless Handsets, Smartphones, PDAs, MP3 Players, and Other Battery-Operated Handheld

Products
