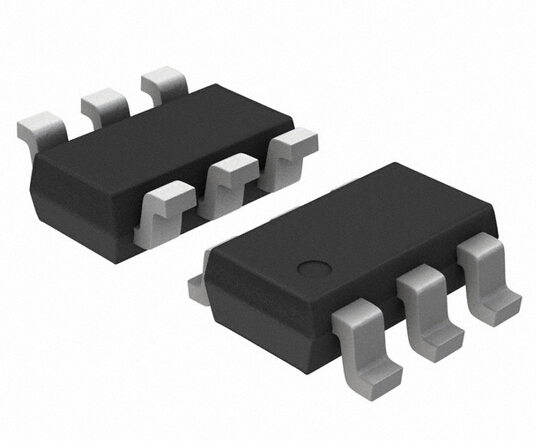

TEXAS INSTRUMENTS TPS562200DDCR 直流-直流开关降压, 逐步递降稳压器, 可调, 4.5V-17V输入, 760mV-7V/2A输出, 650kHz, SOT-23-6 新
降压 开关稳压器 IC 正 可调式 0.765V 1 输出 2A SOT-23-5 细型,TSOT-23-5
立创商城:
降压型 Vin=4.5V~17V Vout=765mV~7V 2A
得捷:
IC REG BUCK ADJ 2A TSOT23-6
德州仪器TI:
17 V Input, 2A Synchronous Step-Down Regulator in SOT-23 with Advanced Eco-mode™
艾睿:
Adjust the voltage level of your devices with this step down TPS562200DDCR DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 2 A. By only needing an input voltage of 4.5 V with a maximum of 17 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 0.67 to 7 V, this is power management at its best. This device has a typical switch current of 3.2 A. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
Conv DC-DC Single-OUT Step Down 4.5V to 17V 6-Pin SOT-23 T/R
Verical:
Conv DC-DC 4.5V to 17V Synchronous Step Down Single-Out 0.67V to 7V 2A 6-Pin TSOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TPS562200DDCR DC/DC CONV, SYNC BUCK, 650KHZ, SOT-23-6
力源芯城:
2A 同步降压 SWIFT 转换器
Win Source:
IC REG BUCK ADJ 2A SYNC SOT-23-6
DeviceMart:
IC REG BUCK SYNC ADJ 2A SOT-23-6
输出接口数 1
输出电压 0.67V ~ 7V
输出电流 2 A
针脚数 6
静态电流 230 µA
调节输出数 1
开关频率 650 kHz
拓扑结构 Buck
开关电流 3.2 A
输入电压Max 17 V
输入电压Min 4.5 V
输出电压Max 7 V
输出电压Min 760 mV
输出电流Max 2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 17 V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
封装 TSOT-23-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS562200DDCR TI 德州仪器 | 当前型号 | 当前型号 |
TPS562200DDCT 德州仪器 | 类似代替 | TPS562200DDCR和TPS562200DDCT的区别 |
