非稳压60毫安电荷泵电压逆变器 UNREGULATED 60-mA CHARGE PUMP VOLTAGE INVERTER
充电泵 开关稳压器 IC 正或负 固定 -Vin,2Vin,Vin/2 1 输出 60mA SC-74A,SOT-753
得捷:
IC REG CHARG PUMP INV 60MA SOT23
立创商城:
Vin=1.8V~5.25V 60mA
德州仪器TI:
Automotive Unregulated 60mA Charge Pump Voltage Inverter with 20kHz Fixed Frequency
艾睿:
Texas Instruments&s; TPS60401QDBVRQ1 charge pump voltage doubler will provide the proper voltage level for each component within your electronic circuit. Its output produces a current of 60Max mA. With an output that has a voltage of -1.8 to -5.25 V, this is power management at its best. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This inverting charge pump has an operating temperature range of -40 °C to 125 °C. This device has a minimum operating supply voltage of 1.8 V and a maximum of 5.25 V.
安富利:
Charge Pump INV/STPDN -1.8V to -5.25V 60mA 5-Pin SOT-23 T/R
Chip1Stop:
Charge Pump INV/STPDN -1.8V to -5.25V 60mA Automotive 5-Pin SOT-23 T/R
Verical:
Charge Pump INV/STPDN -1.8V to -5.25V 60mA Automotive 5-Pin SOT-23 T/R
DeviceMart:
IC REG SWITCHED CAP INV SOT23-5
输出接口数 1
输出电压 -5.25 V
输出电流 60 mA
耗散功率 0.437 W
静态电流 65.0 µA
调节输出数 1
开关频率 20 kHz
输入电压Max 5.25 V
输入电压Min 1.8 V
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 1.8V ~ 5.25V
安装方式 Surface Mount
引脚数 5

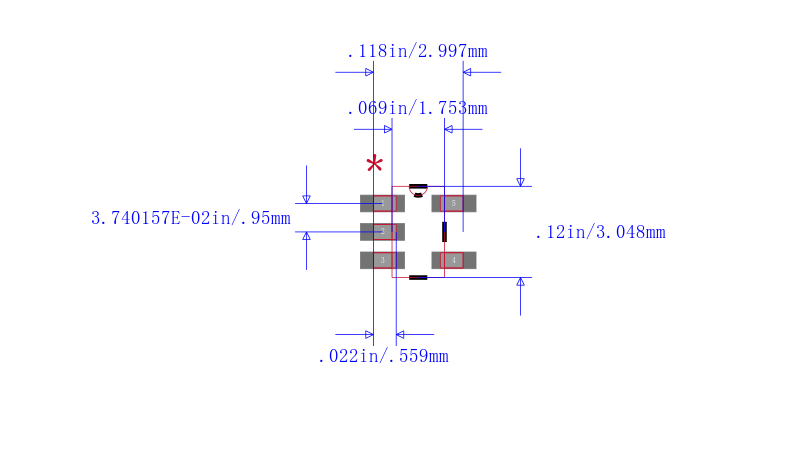

封装 SOT-23-5
宽度 1.6 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
