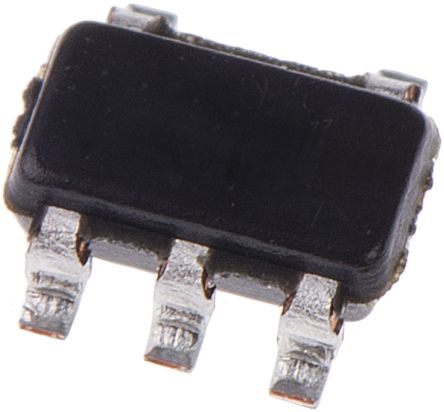

TEXAS INSTRUMENTS TPS780330220DDCT 电压稳压器, LDO, 可调, 2.2V至5.5V输入, 200mV压差, 2.2V至3.3V/150mA输出, TSOT-23-5
LDO(低压降)线性稳压器,双输出,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LIN 3.3V/2.2V 150MA SOT23
立创商城:
TPS780330220DDCT
德州仪器TI:
150-mA, nano-IQ, low-dropout voltage regulator with pin-selectable, dual-level output voltage
欧时:
Texas Instruments TPS780330220DDCT LDO 稳压器, 2.2 V, 3.3 V输出, 150mA最大输出, ±2%精确度
e络盟:
# TEXAS INSTRUMENTS TPS780330220DDCT 电压稳压器, LDO, 可调, 2.2V至5.5V输入, 200mV压差, 2.2V至3.3V/150mA输出, TSOT-23-5
艾睿:
This LDO TPS780330220DDCT linear regulator developed by Texas Instruments keeps the power stable! It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.2@150mA V. This device has a maximum power dissipation of 500 mW. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Use this part at voltages between 2.2 V and 5.5 V. With a fixed output that has a voltage of 2.2|3.3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 2% and line regulation of 1%. Its maximum power dissipation is 500 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.25@150mA V.
安富利:
LDO Regulator Pos 3.3V2.2V 0.15A 5-Pin SOT T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 150mA, Dual Level Fixed 3.3V or 2.2V with Vset Pin, 500nA Quiescent Current LDO Regulator Pos 3.3V2.2V 0.15A 5-Pin TSOT-23 T/R
Verical:
LDO Regulator Pos 2.2V3.3V 0.15A 5-Pin TSOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TPS780330220DDCT LDO Voltage Regulator, Adjustable, 2.2V to 5.5V in, 200mV drop, 2.2V to 3.3V/150mA out, TSOT-23-5
DeviceMart:
IC REG LDO 3.3/2.2V .15A TSOT23
额定功率 0.5 W
输出接口数 1
输出电压 ≥2.20 V
输出电流 150 mA
针脚数 5
耗散功率 500 W
静态电流 0.0005 mA
输出电容类型 Ceramic
跌落电压 200 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Max 3.3 V
输出电压Min 2.2 V
输出电流Max 150 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 3 %
输入电压 2.2V ~ 5.5V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 0.87 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS780330220DDCT TI 德州仪器 | 当前型号 | 当前型号 |
TPS780330220DDCR 德州仪器 | 类似代替 | TPS780330220DDCT和TPS780330220DDCR的区别 |
TPS780270200DDCT 德州仪器 | 类似代替 | TPS780330220DDCT和TPS780270200DDCT的区别 |
TPS780270200DDCR 德州仪器 | 类似代替 | TPS780330220DDCT和TPS780270200DDCR的区别 |
