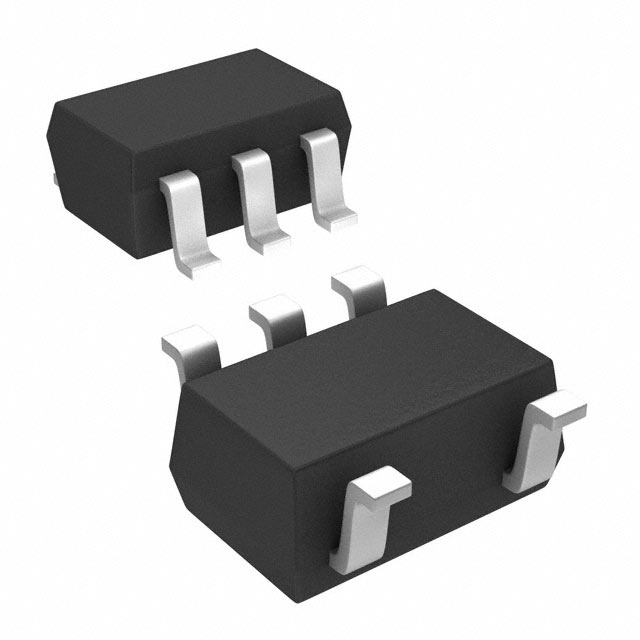

TS 系列 可调节 0.6 V 四端 集电极开路 并联基准 - SC70-5
The TS4436 is a four-terminal device dedicated to low voltage Switch Mode Power Supplies SMPS.
It integrates a 0.6V voltage reference, an amplifier, and an open collector output transistor in a single package. The TS4436’s operating mode is similar to the well-known standard voltage reference, the TL431. It maintains the desired feedback voltage at the REF pin in a closed loop configuration by sinking a current proportional to the error voltage at the REF pin.
TS4436 features an open collector transistor with an ultra-low saturation voltage. This feature allows it to be used in series with the optocoupler in an SMPS for regulation up to a 1.8V output voltage.
**Key Features**
容差 ±1 %
输入电压DC 10.0V max
输出电压 0.6V ~ 10V
输出电流 20 mA
通道数 1
输入电压Max 12 V
输出电压Max 1.8 V
输出电压Min 0.6 V
输出电流Max 20 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 1 %
输入电压 12 V
安装方式 Surface Mount
引脚数 5
封装 SOT-323-5
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SOT-323-5
工作温度 -40℃ ~ 85℃
温度系数 ±150 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TS4436ICT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TS4436AICT 意法半导体 | 完全替代 | TS4436ICT和TS4436AICT的区别 |
ZXRE060AET5TA 美台 | 功能相似 | TS4436ICT和ZXRE060AET5TA的区别 |
