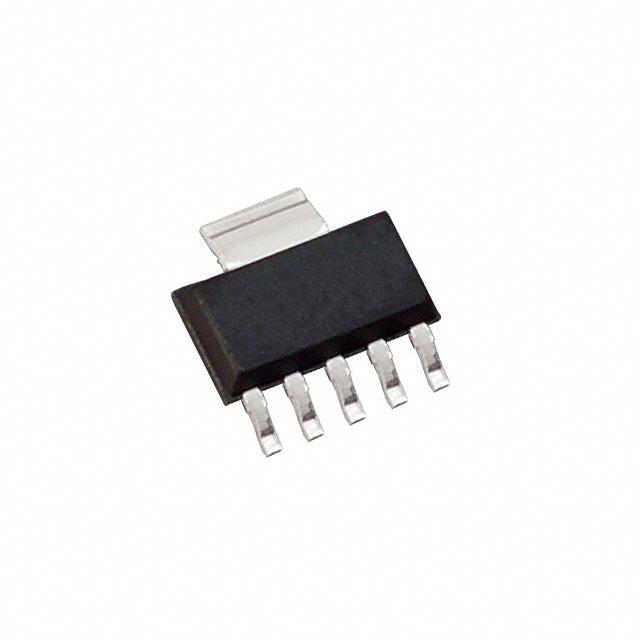

1A低压降稳压器具有反向电流保护 1A Low-Dropout Regulator with Reverse Current Protection
If you need to maintain a steady voltage on your circuit, then this LDO linear regulator from Texas Instruments is perfect for you! It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.13@1A V. This voltage regulation device"s single output can produce a current up to 1 A. By only needing an input voltage of 2.2 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. At a load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp your circuit is capable of maintaining a constant voltage level at your output. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.5@1A V.
输出接口数 1
输出电压 2.5 V
输出电流 1 A
供电电流 400µA ~ 1.3mA
耗散功率 2220 W
静态电流 400 µA
输出电容类型 Ceramic
跌落电压 0.13V @1A
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Min 2.5 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 3 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 6
封装 SOT-223-6
高度 1.65 mm
封装 SOT-223-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73725DCQR TI 德州仪器 | 当前型号 | 当前型号 |
TPS73725DCQ 德州仪器 | 完全替代 | TPS73725DCQR和TPS73725DCQ的区别 |
TPS73725DCQRG4 德州仪器 | 类似代替 | TPS73725DCQR和TPS73725DCQRG4的区别 |
TPS73725DCQG4 德州仪器 | 类似代替 | TPS73725DCQR和TPS73725DCQG4的区别 |
