1A低压降稳压器具有反向电流保护 1A Low-Dropout Regulator with Reverse Current Protection
* Stable With 1-µF or Larger Ceramic Output Capacitor * Input Voltage Range: 2.2 V to 5.5 V * Ultralow Dropout Voltage: 130 mV Typical at 1 A * Excellent Load Transient Response–Even With Only 1-µF Output Capacitor * NMOS Topology Delivers Low Reverse Leakage Current * 1% Initial Accuracy * 3% Overall Accuracy Over Line, Load, and Temperature * Less Than 20 nA Typical IQ in Shutdown Mode * Thermal Shutdown and Current Limit for Fault Protection * Available in Multiple Output Voltage Versions * Adjustable Output: 1.20 V to 5.5 V * Custom Outputs Available Using Factory Package-Level Programming
输出接口数 1
输出电压 3.3 V
输出电流 1 A
供电电流 400µA ~ 1.3mA
静态电流 400 µA
输出电容类型 Ceramic
跌落电压 0.13V @1A
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Min 3.3 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 5.5 V
安装方式 Surface Mount
引脚数 6

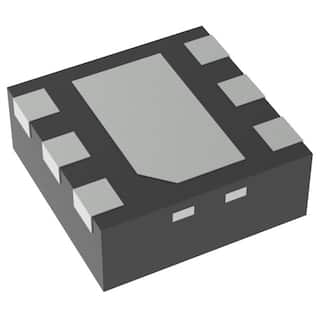

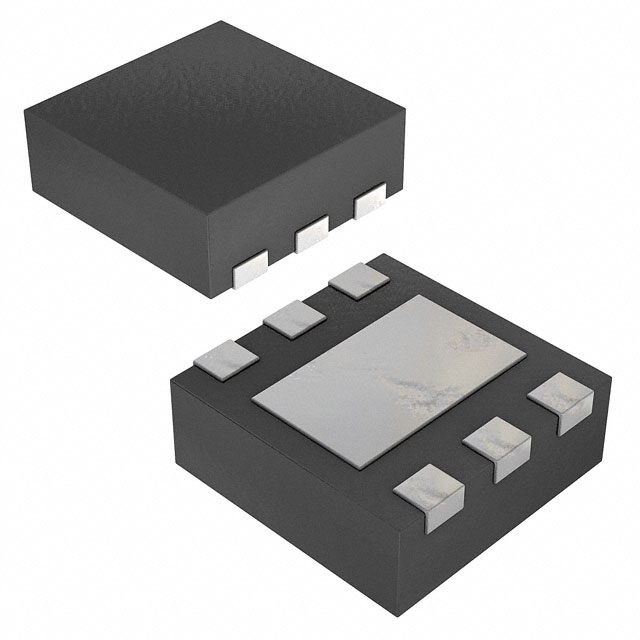

封装 WSON-6
封装 WSON-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73733DRVR TI 德州仪器 | 当前型号 | 当前型号 |
TPS73733DRVT 德州仪器 | 类似代替 | TPS73733DRVR和TPS73733DRVT的区别 |
