B 33uF ±20% 6.3V

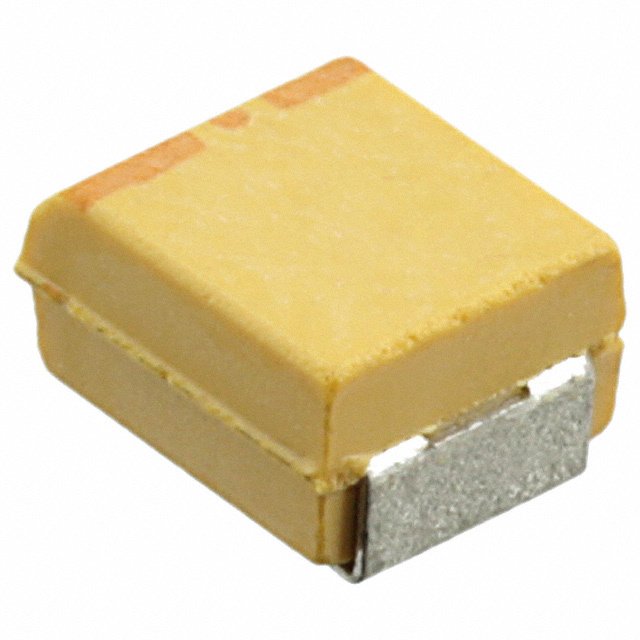

If you need a capacitor that can be used in a variety of applications such as heavy industrial, medical, military, and aerospace then use this solid tantalum capacitor from Kemet. It can withstand a voltage of 6.3 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 2.1 μA. This product is 3.5 mm long, 1.9 mm tall and 2.8 mm deep. It has a tolerance of 20%. Its capacitance value is 33uF.
额定电压DC 6.3 V
电容 33 µF
等效串联电阻ESR 600 mΩ
容差 ±20 %
产品系列 T494
纹波电流 376 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount
封装 3528
长度 3.5 mm
宽度 2.8 mm
高度 1.9 mm
封装 3528
工作温度 -55℃ ~ 125℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
最小包装 2000
寿命（小时） 2000h @85℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
ECCN代码 EAR99
