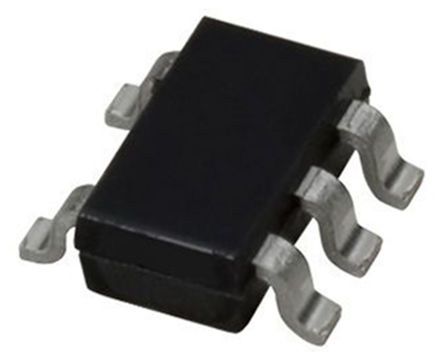

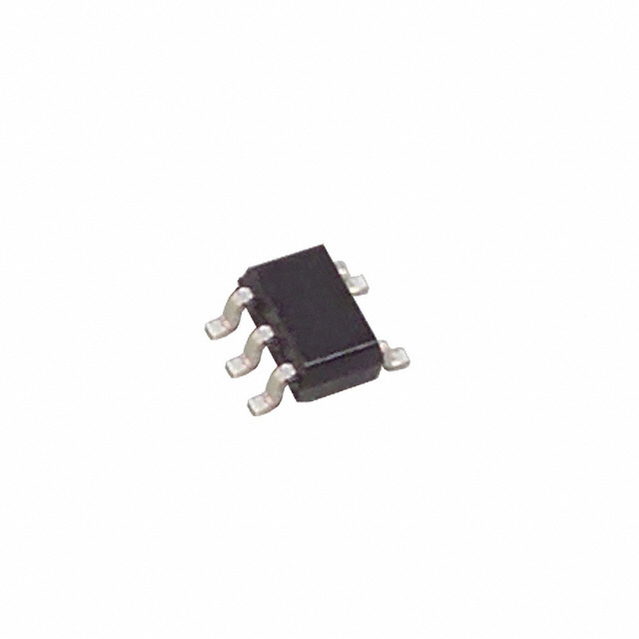

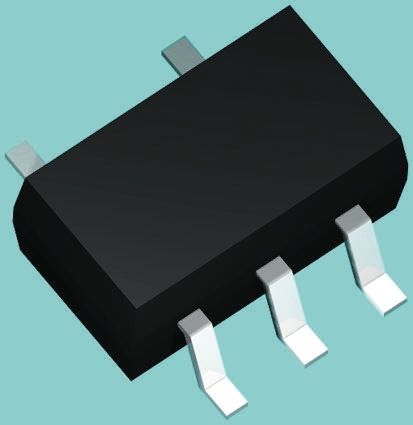

TPS71728DCKT

LDO（低压降）线性电压调节器，150mA，2.0V 至 2.9V，Texas Instruments### LDO（低压降）线性电压调节器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

LDO（低压降）线性稳压器，150mA，2.0V 至 2.9V，Texas Instruments

立创商城:
TPS71728DCKT

德州仪器TI:
150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable

得捷:
IC REG LINEAR 2.8V 150MA SC70-5

欧时:
### LDO（低压降）线性稳压器，150mA，2.0V 至 2.9V，Texas Instruments### LDO（低压降）线性稳压器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

艾睿:
This LDO TPS71728DCKT linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±3 %. Its typical dropout voltage at current is 0.17@150mA V. This device has a maximum power dissipation of 320 mW. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Using the part will provide the power your application needs by requiring a voltage only of 2.5 V and not exceeding a voltage of 6.5 V. With a fixed output that has a voltage of 2.8 V, this is power management at its best. A load regulation of 120uV/mATyp and line regulation of 125uV/VTyp is necessary for providing a constant voltage level at your output. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.3@150mA V. Its polarity is positive.

安富利:
LDO Regulator Pos 2.8V 0.15A 5-Pin SC-70 T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 150mA, Fixed 2.8V, High PSRR, Low Quiescent Current, Low Noise LDO Regulator Pos 2.8V 0.15A 5-Pin SC-70 T/R

Verical:
LDO Regulator Pos 2.8V 0.15A 5-Pin SC-70 T/R
