低噪声,高带宽PSRR低压降150mA线性稳压器 Low Noise, High-Bandwidth PSRR Low-Dropout 150mA Linear Regulator

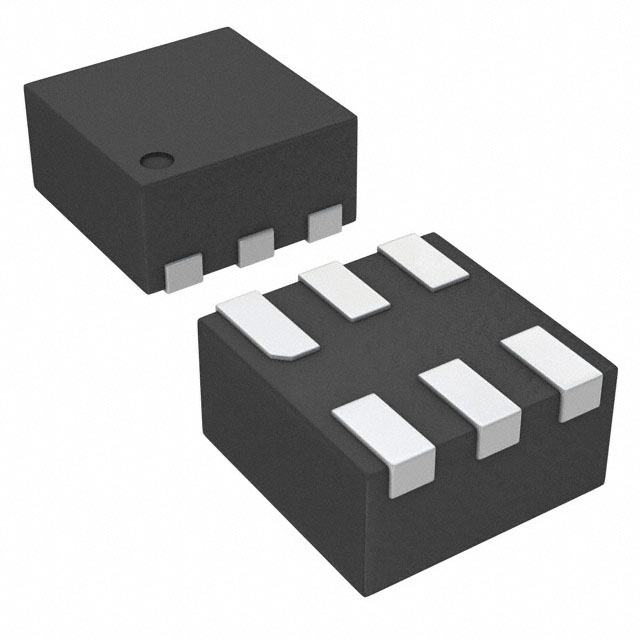

PMIC - 稳压器 - 线性 输出 150mA 6-WSON(1.5x1.5)
立创商城:
TPS71728DSET
德州仪器TI:
150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable
得捷:
IC REG LINEAR 2.8V 150MA 6WSON
艾睿:
This LDO TPS71728DSET linear regulator developed by Texas Instruments keeps the power stable! This device has a maximum power dissipation of 485 mW. It has an overall accuracy of ±3 %. Its typical dropout voltage at current is 0.17@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Use this part at voltages between 2.5 V and 6.5 V. With a fixed output that has a voltage of 2.8 V, this is power management at its best. Users like the load regulation of 120uV/mATyp and line regulation of 125uV/VTyp. Its maximum power dissipation is 485 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. The maximum dropout voltage is 0.3@150mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 2.8V 0.15A 6-Pin WSON T/R
Verical:
LDO Regulator Pos 2.8V 0.15A 6-Pin WSON T/R
输出接口数 1
输出电压 2.8 V
输出电流 150 mA
耗散功率 0.485 W
静态电流 45.0 µA
输出电容类型 Ceramic
跌落电压 0.17V @150mA
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.5 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 485 mW
精度 ±3 %
输入电压 ≤6.5 V
安装方式 Surface Mount
引脚数 6
封装 WFDFN-6
封装 WFDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS71728DSET TI 德州仪器 | 当前型号 | 当前型号 |
TPS71728DSERG4 德州仪器 | 完全替代 | TPS71728DSET和TPS71728DSERG4的区别 |
TPS71728DSER 德州仪器 | 类似代替 | TPS71728DSET和TPS71728DSER的区别 |
