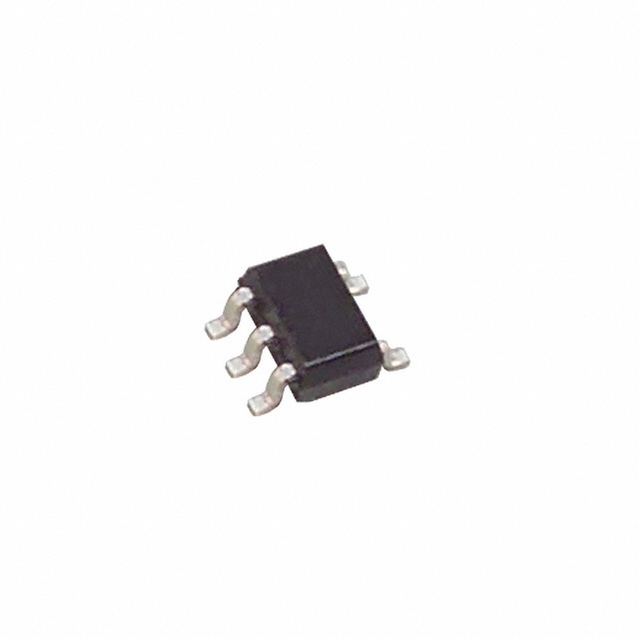

TPS71719DCKT

低噪声，高带宽PSRR低压降150mA线性稳压器 Low Noise, High-Bandwidth PSRR Low-Dropout 150mA Linear Regulator

PMIC - 稳压器 - 线性 正 固定 1 输出 150mA SC-70-5

得捷:
IC REG LINEAR 1.9V 150MA SC70-5

立创商城:
TPS71719DCKT

德州仪器TI:
150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable

贸泽:
低压差稳压器 150mA RF Linear Reg

艾睿:
Stable power is ideal for better processing this LDO TPS71719DCKT linear regulator developed by Texas Instruments will help do so. It has an overall accuracy of ±3 %. Its typical dropout voltage at current is 0.17@150mA V. This device has a maximum power dissipation of 320 mW. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 6.5 V. With a fixed output that has a voltage of 1.9 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 120uV/mATyp and line regulation of 125uV/VTyp. Its maximum power dissipation is 320 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.

安富利:
LDO Regulator Pos 1.9V 0.15A 5-Pin SC-70 T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 150mA, Fixed 1.9V, Low Noise, High PSRR LDO Regulator Pos 1.9V 0.15A 5-Pin SC-70 T/R

Verical:
LDO Regulator Pos 1.9V 0.15A 5-Pin SC-70 T/R

Win Source:
IC REG LDO 1.9V 0.15A SC70-5
