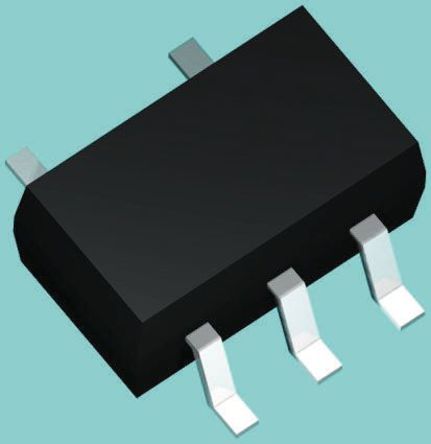

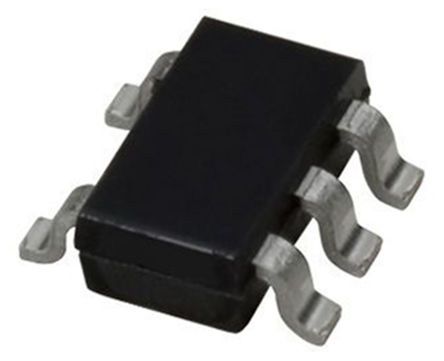

TPS71712DCKT

TEXAS INSTRUMENTS  TPS71712DCKT  固定电压稳压器, LDO, 2.5V至6.5V, 170mV压差, 1.2V输出, 150mA输出, SC-70-5

LDO（低压降）线性稳压器，150mA，1.0V 至 1.9V，Texas Instruments

得捷:
IC REG LINEAR 1.2V 150MA SC70-5

立创商城:
TPS71712DCKT

德州仪器TI:
150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable

欧时:
Texas Instruments TPS71712DCKT LDO 稳压器, 1.2 V输出, 150mA最大输出, ±3%精确度, 2.5 → 6.5 V输入

e络盟:
固定电压稳压器, LDO, 2.5V至6.5V, 170mV压差, 1.2V输出, 150mA输出, SC-70-5

艾睿:
Stable voltages are always needed for sensitive systems implement this LDO TPS71712DCKT linear regulator from Texas Instruments. This device has a maximum power dissipation of 320 mW. Its typical dropout voltage at current is 0.17@150mA V. It has an overall accuracy of ±3 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.5 V and no higher than 6.5 V. With a fixed output that has a voltage of 1.2 V, this is power management at its best. A load regulation of 120uV/mATyp and line regulation of 125uV/VTyp is necessary for providing a constant voltage level at your output. Its maximum power dissipation is 320 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.

安富利:
LDO Regulator Pos 1.2V 0.15A 5-Pin SC-70 T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 150mA, Fixed 1.2V, Low Noise, High PSRR LDO Regulator Pos 1.2V 0.15A 5-Pin SC-70 T/R

Verical:
LDO Regulator Pos 1.2V 0.15A 5-Pin SC-70 T/R

Newark:
# TEXAS INSTRUMENTS  TPS71712DCKT  Fixed LDO Voltage Regulator, 2.5V to 6.5V, 170mV Dropout, 1.2Vout, 150mAout, SC-70-5

DeviceMart:
IC REG LDO 1.2V .15A SC70-5
