350 - mW的单声道音频差分输入放大器 350-mW MONO AUDIO POWER AMPLIFIER WITH DIFFERENTIAL INPUTS
The TPA321 is a bridge-tied load BTL audio power amplifier developed especially for low-voltage applications where internal speakers are required. Operating with a 3.3-V supply, the TPA321 can deliver 250-mW of continuous power into a BTL 8- load at less than 1% THD+N throughout voice band frequencies. Although this device is characterized out to 20 kHz, its operation was optimized for narrower band applications such as cellular communications. The BTL configuration eliminates the need for external coupling capacitors on the output in most applications, which is particularly important for small battery-powered equipment. This device features a shutdown mode for power-sensitive applications with a quiescent current of 0.15 µA during shutdown. The TPA321 is available in an 8-pin SOIC surface-mount package and the surface-mount PowerPAD MSOP, which reduces board space by 50% and height by 40%.
电源电压DC 5.50 V
供电电流 1.5 mA
通道数 1
耗散功率 2.14 W
静态电流 700 µA
增益频宽积 1.4 MHz
输出功率 700 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2140 mW
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Surface Mount

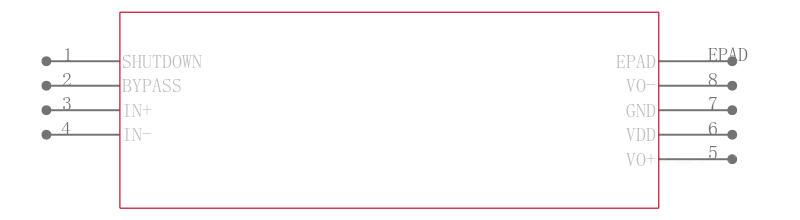

引脚数 8

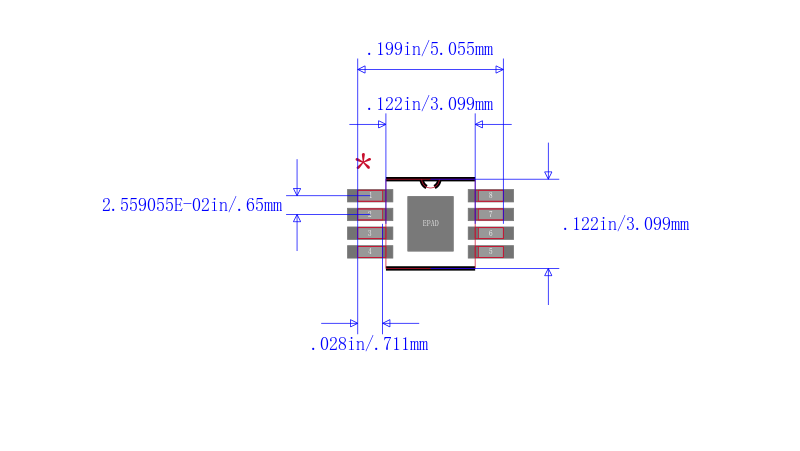

封装 PowerPad-MSOP-8
封装 PowerPad-MSOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPA321DGN TI 德州仪器 | 当前型号 | 当前型号 |
TPA311DGNG4 德州仪器 | 完全替代 | TPA321DGN和TPA311DGNG4的区别 |
TPA301DGN 德州仪器 | 类似代替 | TPA321DGN和TPA301DGN的区别 |
TPA6205A1DGN 德州仪器 | 类似代替 | TPA321DGN和TPA6205A1DGN的区别 |
