TC1165 低压降电压稳压器### LDO(低压降)线性电压调节器,Microchip
TC1165 低压降电压稳压器
得捷:
IC REG LINEAR 3.3V 800MA 5DDPAK
立创商城:
TC1265-3.3VETTR
欧时:
Microchip TC1265-3.3VETTR LDO 稳压器, 3.3 V输出, 800mA最大输出, 2.7 → 6 V输入, 5引脚 D2PAK封装
艾睿:
Maintain a steady voltage level with this LDO TC1265-3.3VETTR linear regulator from Microchip Technology. It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.02@100uA|0.05@100mA|0.15@300mA|0.26@500mA|0.45@800mA V. This voltage regulation device&s;s single output can produce a current up to 0.8Min A. It only needs a voltage of at least 2.7 V while not exceeding 6 V to effectively power your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.002%/mATyp and line regulation of 0.007%Typ. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. The maximum dropout voltage is 0.03@100uA|0.16@100mA|0.48@300mA|0.8@500mA|1.3@800mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
Allied Electronics:
TC1265-3.3VETTR, LDOVoltage Regulator, 800mA, 3.3V, 2.7 to 6Vin, 5-Pin D2PAK
安富利:
LDO Regulator Pos 3.3V 0.8A 6-Pin5+Tab DDPAK T/R
富昌:
TC1265系列 800mA 3.3V 固定输出 CMOS LDO 具有关断功能-DDPAK-5
Chip1Stop:
LDO Regulator Pos 3.3V 0.8A 6-Pin5+Tab DDPAK T/R
输出接口数 1
输入电压DC 2.70V min
输出电压 3.3 V
输出电流 800 mA
静态电流 80.0 µA
输出电容类型 Tantalum
输入电压Max 6 V
输入电压Min 2.7 V
输出电流Max 800 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 5

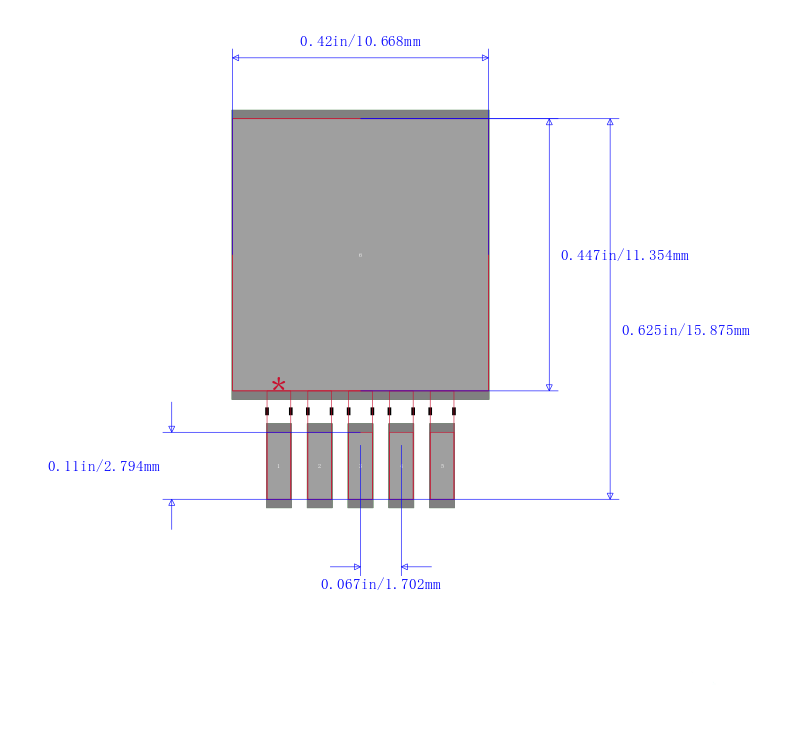

封装 TO-263-6
长度 11.1 mm
宽度 10.41 mm
高度 4.45 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC1265-3.3VETTR Microchip 微芯 | 当前型号 | 当前型号 |
TC1265-3.3VOA 微芯 | 完全替代 | TC1265-3.3VETTR和TC1265-3.3VOA的区别 |
TC1264-3.3VDBTR 微芯 | 完全替代 | TC1265-3.3VETTR和TC1264-3.3VDBTR的区别 |
TC1265-3.3VAT 微芯 | 完全替代 | TC1265-3.3VETTR和TC1265-3.3VAT的区别 |
