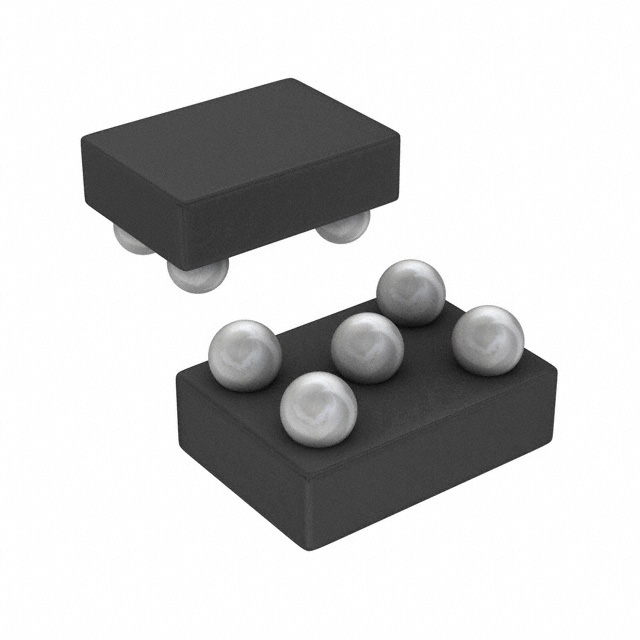

TPS72012YZUT

350mA电流超低VIN ，射频低压差线性稳压器，具有BIAS引脚 350mA, Ultra-Low VIN, RF Low-Dropout Linear Regulator with Bias Pin

Keep calm and stay stable by implementing this LDO linear regulator developed by Texas Instruments. This device has a maximum power dissipation of 403 mW. Its typical dropout voltage at current is 0.11@350mA V. It has an overall accuracy of ±2 %. This voltage regulation device"s single output can produce a current up to 0.35 A. The best way to provide power to your application is by using this, which needs a voltage of at least 1.1 V and no higher than 4.5 V. With a fixed output that has a voltage of 1.2 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of -15uV/mATyp and line regulation of 16uV/VTyp. Its maximum power dissipation is 403 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. The maximum dropout voltage is 0.2@350mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
