TEXAS INSTRUMENTS TPS73701DRBR 芯片, 可调稳压器, LDO, 1.2V 至 5.5V, 1A, SON-8, 整卷
Keep the energy stable for every system by using this LDO linear regulator by Texas Instruments. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.13@1A V. This voltage regulation device"s single output can produce a current up to 1 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.2 V and no higher than 5.5 V. With an adjustable output that has a voltage of 1.2 to 5.5 V, this is power management at its best. At a load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp your circuit is capable of maintaining a constant voltage level at your output. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. The maximum dropout voltage is 0.5@1A V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 1.2V ~ 5.5V
输出电流 1 A
供电电流 400µA ~ 1.3mA
针脚数 8
耗散功率 2500 W
静态电流 400 µA
输出电容类型 Ceramic
跌落电压 130 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Max 5.5 V
输出电压Min 1.2 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 5.5V ~ 2.2V
安装方式 Surface Mount
引脚数 8

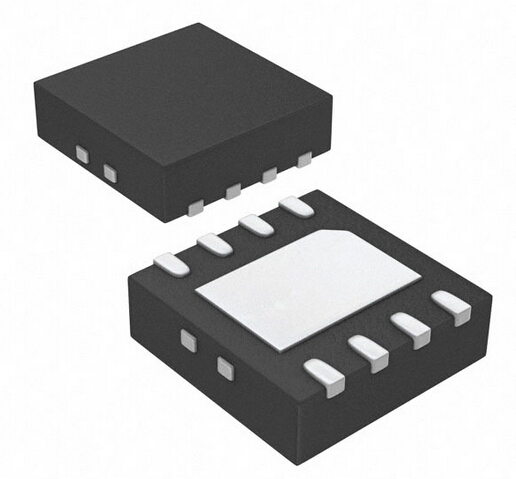

封装 VDFN-8
宽度 3 mm
封装 VDFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 电源管理, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73701DRBR TI 德州仪器 | 当前型号 | 当前型号 |
TPS73701DRBT 德州仪器 | 类似代替 | TPS73701DRBR和TPS73701DRBT的区别 |
TPS73701DRBTG4 德州仪器 | 类似代替 | TPS73701DRBR和TPS73701DRBTG4的区别 |
TPS73701DRBRG4 德州仪器 | 类似代替 | TPS73701DRBR和TPS73701DRBRG4的区别 |
