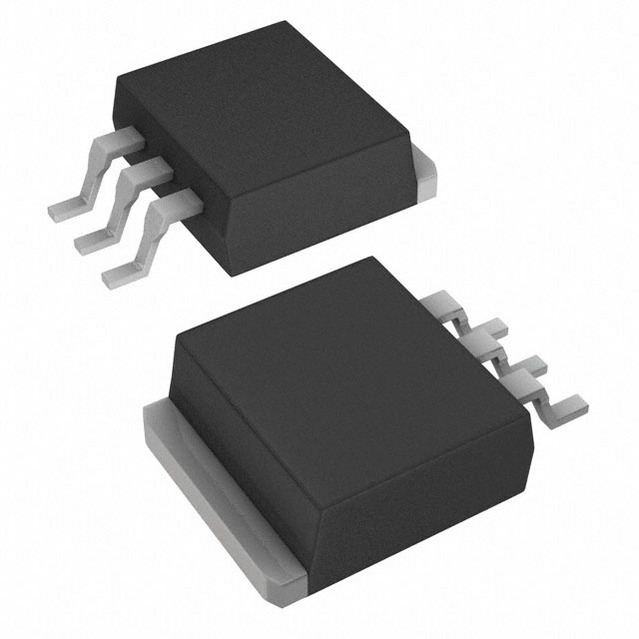

TL750M05CKTTRG3

低压差稳压器 LOW-DROPOUT VOLTAGE REGULATORS

DESCRIPON/ORDERING INFORMATION

The TL750M and TL751M series are low-dropout positive voltage regulators specifically designed for battery-powered systems. The TL750M and TL751M series incorporate onboard overvoltage and current-limiting protection circuitry to protect the devices and the regulated system. Both series are fully protected against 60-V load-dump and reverse-battery conditions. Extremely low quiescent current, even during full-load conditions, makes the TL750M and TL751M series ideal for standby power systems.

FEATURES

• Very Low Dropout Voltage, Less Than 0.6V at 750 mA

• Low Quiescent Current

• TTL- and CMOS-Compatible Enable on TL751M Series

• 60-V Load-Dump Protection

• Overvoltage Protection

• Internal Thermal-Overload Protection

• Internal Overcurrent-Limiting Circuitry
