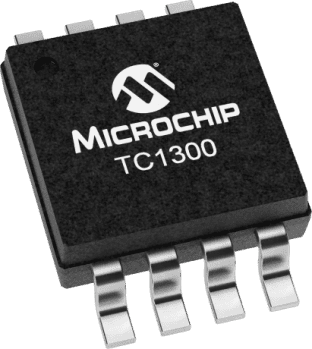

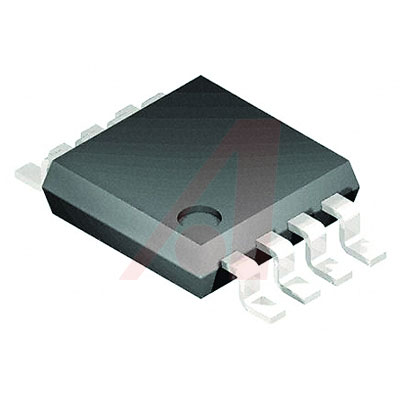

TC1300系列 300mA 3.3V CMOS LDO 带关断、旁路和延时复位功能-MSOP-8
TC1300 Low Dropout Voltage Regulator
得捷:
IC REG LINEAR 3.3V 300MA 8MSOP
欧时:
LDO Regulator, 3.3V, 300mA, 8-Pin, MSOP
立创商城:
TC1300R-3.3VUA
艾睿:
This LDO TC1300R-3.3VUA linear regulator developed by Microchip Technology keeps the power stable! It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.001@100uA|0.07@100mA|0.21@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3Min A. By only needing an input voltage of 2.7 V with a maximum of 6 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.5%Typ and line regulation of 0.02%Typ. Its polarity is positive. The maximum dropout voltage is 0.03@100uA|0.13@100mA|0.39@300mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Allied Electronics:
Microchip TC1300R-3.3VUA, LDO Voltage Regulator, 300mA,
安富利:
LDO Regulator Pos 3.3V 0.3A 8-Pin MSOP
Chip1Stop:
LDO Regulator Pos 3.3V 0.3A 8-Pin MSOP
额定电流 300 mA
输出接口数 1
输入电压DC 2.70V min
输出电压 3.3 V
输出电流 300 mA
静态电流 80.0 µA
输出电容类型 Tantalum
跌落电压 210 mV
输入电压Max 6 V
输入电压Min 2.7 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
宽度 3 mm
封装 MSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC1300R-3.3VUA Microchip 微芯 | 当前型号 | 当前型号 |
TC1300R-3.0VUATR 微芯 | 类似代替 | TC1300R-3.3VUA和TC1300R-3.0VUATR的区别 |
TC1300R-2.8VUA 微芯 | 类似代替 | TC1300R-3.3VUA和TC1300R-2.8VUA的区别 |
