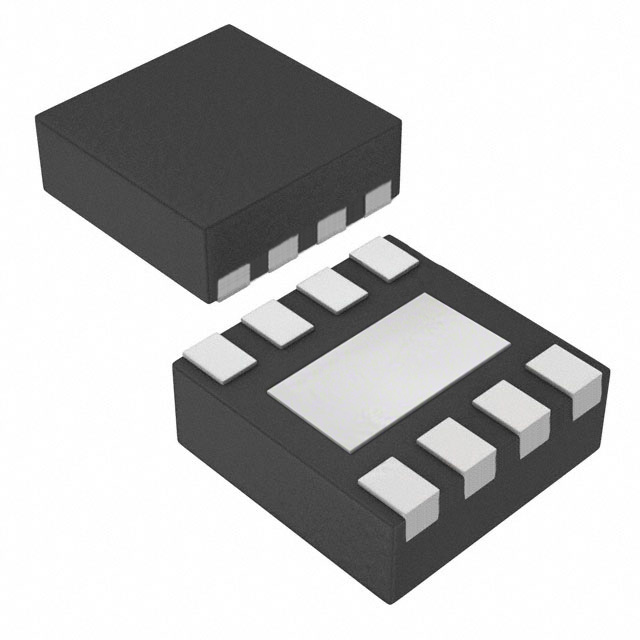

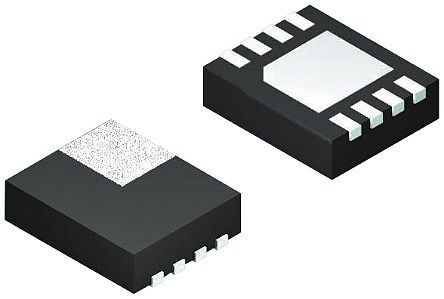

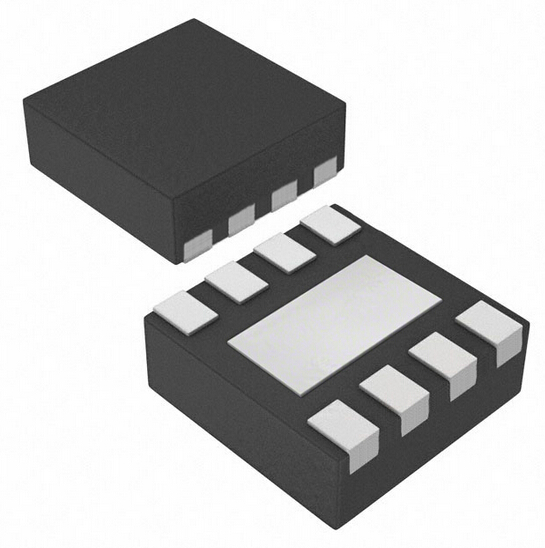

TEXAS INSTRUMENTS TPS62125DSGT 直流-直流开关降压逐步递减稳压器, 可调, 3V-17V输入, 1.2V-10V输出, 300mA输出, WSON-8
降压 开关稳压器 IC 正 可调式 1.2V 1 输出 300mA 8-WFDFN 裸露焊盘
欧时:
### Step-Down DC/DC Converters Integrated Switch 9V to 30V Input Max., Texas Instruments### 直流/直流开关调节器转换器(集成开关),Texas InstrumentsTexas Instruments 的此系列高度集成的高效开关稳压器包括步升(升压)、步降(降压)、步升/降(增压/降压)和反相类型,为每个直流稳压器应用提供高效的解决方案。
得捷:
IC REG BUCK ADJ 300MA 8WSON
立创商城:
降压型 Vin=3V~17V Vout=1.2V~10V 300mA
德州仪器TI:
3V-17V, 300mA Buck Converter With Adjustable Enable Threshold And Hysteresis
e络盟:
TEXAS INSTRUMENTS TPS62125DSGT. 芯片, 直流/直流转换器, 降压, 1MHZ, WSON-8, 整卷
艾睿:
Adjust the voltage level of your devices with this step down TPS62125DSGT DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 0.3 A. This will operate at a minimum voltage of 3 V and a maximum voltage of 17 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.2 to 10 V, this is power management at its best. At a load regulation of -0.004%mATyp and line regulation of -0.05%/VTyp a constant current can be produced at the output of your circuit. Its switching regulator has a frequency of 1000Max kHz. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
Conv DC-DC Single Step Down 3V to 17V 8-Pin WSON EP
Chip1Stop:
Conv DC-DC 3V to 17V Step Down Single-Out 1.2V to 10V 0.3A 8-Pin WSON EP T/R
Verical:
Conv DC-DC 3V to 17V Synchronous Step Down Single-Out 1.2V to 10V 0.3A 8-Pin WSON EP T/R
Newark:
# TEXAS INSTRUMENTS TPS62125DSGT DC-DC Switching Buck Step Down Regulator, Adjustable, 3V-17Vin, 1.2V-10Vout, 300mAout, WSON-8
力源芯城:
3V至17V,300mA,降压转换器
DeviceMart:
IC REG BUCK SYNC ADJ 0.3A 8WSON
Win Source:
IC REG BUCK ADJ 0.3A SYNC 8WSON
输出接口数 1
输出电压 1.2V ~ 10V
输出电流 300 mA
针脚数 8
静态电流 13.0 µA
调节输出数 1
开关频率 1 MHz
拓扑结构 Buck
输入电压Max 17 V
输入电压Min 3 V
输出电压Max 10 V
输出电压Min 1.2 V
输出电流Max 0.3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3 V
输入电压 3V ~ 17V
安装方式 Surface Mount
引脚数 8

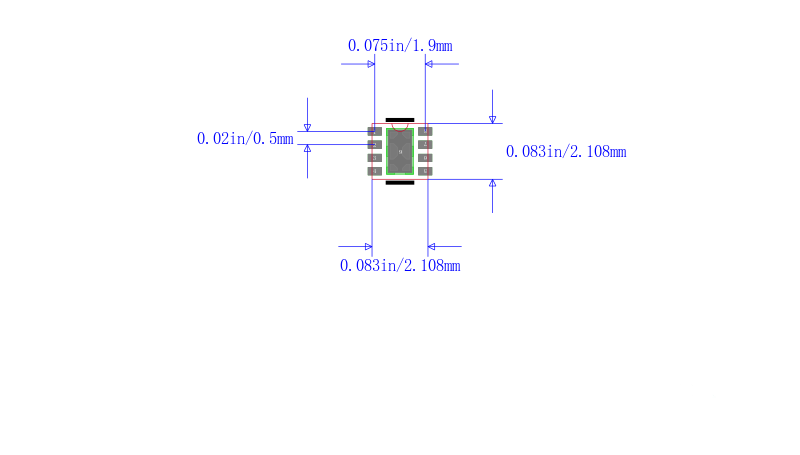

封装 WFDFN-8
长度 2.1 mm
宽度 2.1 mm
高度 0.75 mm
封装 WFDFN-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 信号处理, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS62125DSGT TI 德州仪器 | 当前型号 | 当前型号 |
TPS62125DSGR 德州仪器 | 类似代替 | TPS62125DSGT和TPS62125DSGR的区别 |
