MPU 监控和重置电路,Texas Instruments,0.8V 至 2.99VTexas Instruments 微处理器电源电压监控和重置电路系列,具有固定阈值电压电平。### 微处理器电源电压监控和复位电路电源电压监测和监控电路,用于台式机、便携式计算机和笔记本电脑、测试和测量仪器、便携式电池供电设备和多输出电源。电源电压探测器 电源电压监控器 电源监控器 微处理器监控 微处理器电压监控器 微控制器复位电路
MPU 监控和重置电路,Texas Instruments,0.8V 至 2.99V
Texas Instruments 微处理器电源电压监控和重置电路系列,具有固定阈值电压电平。
得捷:

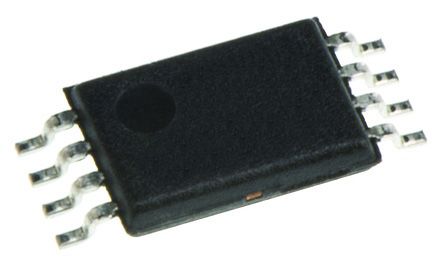

IC SUPERVISOR 1 CHANNEL 8TSSOP
立创商城:
TLC7701IPW
德州仪器TI:
Voltage supervisor with programmable delay time
欧时:
### MPU 监控和重置电路,Texas Instruments,0.8V 至 2.99VTexas Instruments 微处理器电源电压监控和重置电路系列,具有固定阈值电压电平。### 微处理器电源电压监控和复位电路电源电压监测和监控电路,用于台式机、便携式计算机和笔记本电脑、测试和测量仪器、便携式电池供电设备和多输出电源。电源电压探测器 电源电压监控器 电源监控器 微处理器监控 微处理器电压监控器 微控制器复位电路
贸泽:
Supervisory Circuits 1.1V Monitor
艾睿:
Prevent any unwanted voltage spikes in your circuit with this supply voltage supervisory TLC7701IPW voltage monitor IC from Texas Instruments. This device has a maximum power dissipation of 525 mW. Its maximum power dissipation is 525 mW. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 2 V and a maximum of 6 V. This voltage supervisor IC has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a typical reset threshold voltage of 1.1 V, with a minimum of 1.04 V and a maximum of 1.16 V.
Chip1Stop:
Volt Supervisor Supply 5V 8-Pin TSSOP Tube
Verical:
Processor Supervisor 1.1V 1 Active High/Active Low/Push-Pull 8-Pin TSSOP
DeviceMart:
IC 1.1V SUPPLY MONITOR 8-TSSOP
Win Source:
IC 1.1V SUPPLY MONITOR 8-TSSOP
电源电压DC 6.00V max
输出电流 10 mA
供电电流 0.016 mA
耗散功率 525 mW
静态电流 9.00 µA
阈值电压 1.1 V
输出电流Max 2 mA
复位电压Min 1.04 V
复位电压Max 1.16 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 525 mW
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 8
封装 TSSOP-8
长度 3 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLC7701IPW TI 德州仪器 | 当前型号 | 当前型号 |
TLC7701IPWR 德州仪器 | 完全替代 | TLC7701IPW和TLC7701IPWR的区别 |
TLC7701QPWRQ1 德州仪器 | 类似代替 | TLC7701IPW和TLC7701QPWRQ1的区别 |
TLC7701IPWRG4 德州仪器 | 类似代替 | TLC7701IPW和TLC7701IPWRG4的区别 |
