TEXAS INSTRUMENTS TPS70927DBVT 固定电压稳压器, LDO, 2.7V至30V, 300mV压差, 2.7V输出, 150mA输出, SOT-23-5
LDO(低压降)线性稳压器,150mA,2.0V 至 2.9V,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 2.7V 150MA SOT23-5
立创商城:
TPS70927DBVT
德州仪器TI:
150-mA, 30-V, ultra-low-IQ, low-dropout voltage regulator with reverse current protection and enable
欧时:
### LDO(低压降)线性电压调节器,150mA,2.0V 至 2.9V,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
TEXAS INSTRUMENTS TPS70927DBVT LDO VOLTAGE REGULATOR, FIXED, 2.7V, 150mA, SOT-23-5
艾睿:
Control the voltage level of your circuit with this LDO TPS70927DBVT linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.245@50mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 30 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 2.7 V, this is power management at its best. Users like the load regulation of 20mVTyp and line regulation of 3mVTyp. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 2.7V 0.15A 5-Pin SOT-23 T/R
Chip1Stop:
LDO Regulator Pos 2.7V 0.15A 5-Pin SOT-23 T/R
TME:
Voltage regulator; LDO, fixed; 2.7V; 0.15A; SOT23-5; SMD; -40÷125°C
Verical:
LDO Regulator Pos 2.7V 0.15A 5-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TPS70927DBVT Fixed LDO Voltage Regulator, 2.7V to 30V, 300mV Dropout, 2.7Vout, 150mAout, SOT-23-5
输出接口数 1
输出电压 2.7 V
输出电流 150 mA
针脚数 5
静态电流 1 µA
输出电容类型 Ceramic
跌落电压 300 mV
调节输出数 1
过温保护 Yes
输入电压Max 30 V
输入电压Min 2.7 V
输出电流Max 150 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2.7V ~ 30V
安装方式 Surface Mount
引脚数 5

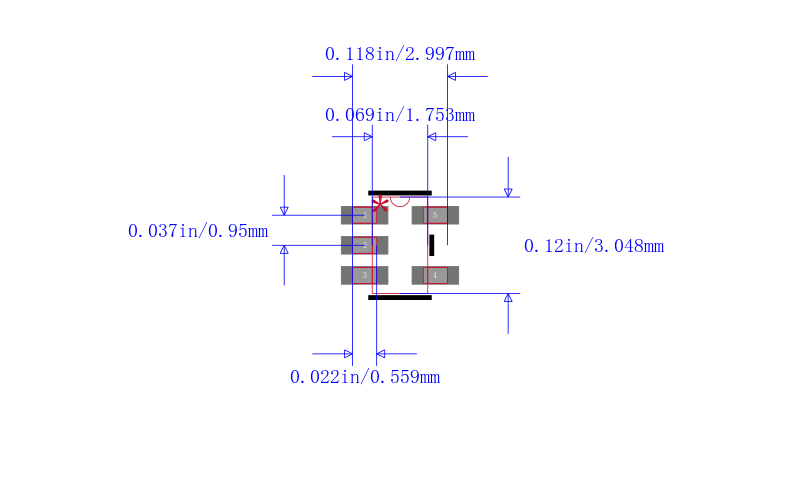

封装 SOT-23-5
长度 3.05 mm
宽度 1.75 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS70927DBVT TI 德州仪器 | 当前型号 | 当前型号 |
TPS70927DBVR 德州仪器 | 类似代替 | TPS70927DBVT和TPS70927DBVR的区别 |
MIC5235-2.7YM5TR 迈瑞 | 类似代替 | TPS70927DBVT和MIC5235-2.7YM5TR的区别 |
MIC5235-2.7BM5TR 迈瑞 | 类似代替 | TPS70927DBVT和MIC5235-2.7BM5TR的区别 |
