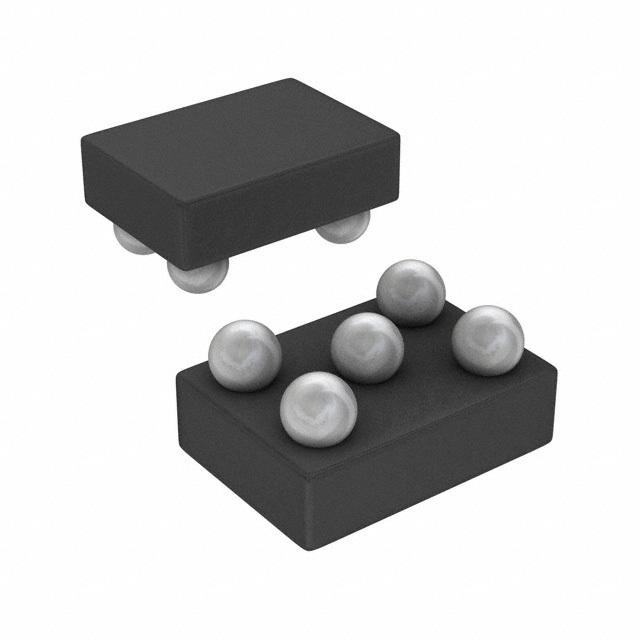

TPS728185315YZUT

200毫安低压差线性稳压器，具有引脚可选双电压电平输出 200mA Low-Dropout Linear Regulator with Pin-Selectable Dual-Voltage Level Output

PMIC - 稳压器 - 线性 正 固定 输出 200mA 5-DSBGA（1x1.37）

得捷:
IC REG LDO 1.85V/3.15V 5DSBGA

立创商城:
TPS728185315YZUT

德州仪器TI:
200-mA, low-dropout voltage regulator with low-IQ & enable

贸泽:
LDO Voltage Regulators Sgl Output LDO 200mA Dual Level Fixed

艾睿:
This LDO TPS728185315YZUT linear regulator developed by Texas Instruments keeps the power stable! It has an overall accuracy of ±2.5 %. Its typical dropout voltage at current is 0.23@200mA V. This device has a maximum power dissipation of 370 mW. This voltage regulation device&s;s single output can produce a current up to 0.2 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 6.5 V. With a fixed output that has a voltage of 1.85|3.15 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 75uV/mATyp and line regulation of 130uV/VTyp. Its maximum power dissipation is 370 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum dropout voltage is 0.4@200mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.

安富利:
LDO Regulator Pos 1.85V3.15V 0.2A 5-Pin DSBGA T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 200mA, Dual Level Fixed 1.85V or 3.15V with Vset Pin LDO Regulator Pos 1.85V3.15V 0.2A 5-Pin DSBGA T/R

Verical:
LDO Regulator Pos 1.85V3.15V 0.2A 5-Pin DSBGA T/R

DeviceMart:
IC REG LDO 1.85/3.15V .2A 5DSBGA

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.85V, 3.15V 200mA 5-DSBGA 1x1.37
