音频放大器 2 x 35W Pwr AMP
It"s quick to enhance the sound at your output by applying this class D amplifier from STMicroelectronics. Its maximum power dissipation is 36000 mW. This audio amplifier can handle a current up to 8000 mA. It has a differential input signal and a differential output signal. It has a maximum load resistance of 4 Ohm. It has a 2-channel stereo output. This audio amplifier has a temperature range of -40 °C to 150 °C. Its typical PSRR is 55 dB. This device uses a single power supply.
输出电流 8000 mA
耗散功率 36000 mW
共模抑制比 60 dB
输出功率 37 W
增益 26 dB
输出电流Max 8000 mA
工作温度Max 150 ℃
工作温度Min -40 ℃
耗散功率Max 36000 mW
共模抑制比Min 60 dB
电源电压 8V ~ 18V
安装方式 Surface Mount
引脚数 36

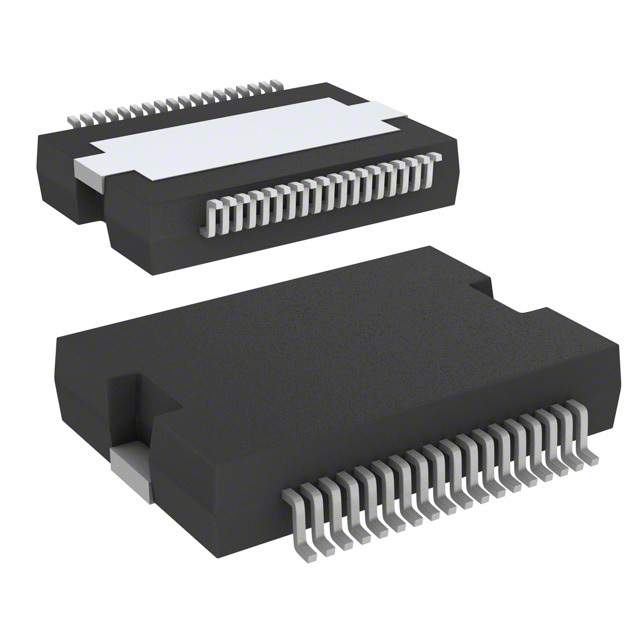

封装 PowerSO-36
长度 15.9 mm
宽度 11.1 mm
高度 3.3 mm
封装 PowerSO-36
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TDA7376PDTR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TDA7376PD 意法半导体 | 完全替代 | TDA7376PDTR和TDA7376PD的区别 |
TDA7575BPDTR 意法半导体 | 类似代替 | TDA7376PDTR和TDA7575BPDTR的区别 |
TDA7575BPD 意法半导体 | 类似代替 | TDA7376PDTR和TDA7575BPD的区别 |
