限流配电开关 Current-Limited, Power-Distribution Switches
DESCRIPON
The TPS2530 power-distribution switch is intended for applications such as DisplayPort or USB Port where heavy capacitive loads and short-circuits are likely to be encountered. It offers 0.5 A fixed current limit thresholds.
The TPS2530 limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current-limit threshold. This provides a predictable fault current under all conditions. The fast overload response time eases the burden on the main supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turn-on and turn-off.
FEATURES
• Single Power Switch
• Pin for Pin with Existing TI Switch Portfolio™
• Rated Currents of 0.5 A
• ±25% Accurate, Fixed, Constant Current Limit
• Fast Over-Current Response – 2 µs
• Operating Range: 2.7 V to 5.5 V
• Deglitched Fault Reporting
• Reverse Current Blocking
• Built-in Softstart
• Ambient Temperature Range: –40°C to 85°C
APPLICATIONS
• DisplayPort
• USB Ports/Hubs, Laptops, Desktops
• Set Top Boxes
• Short-Circuit Protection
输出接口数 1
输出电流 500 mA
上升时间 450 µs
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电流Max 500 mA
下降时间 300 µs
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 5

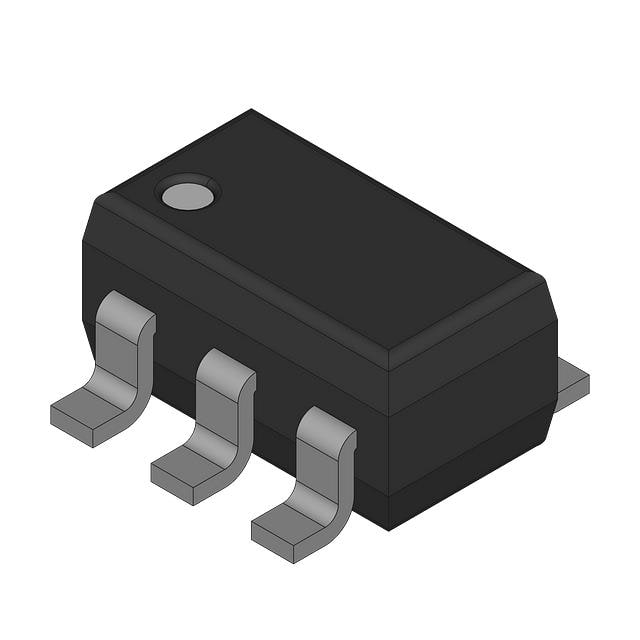

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2530DBVR TI 德州仪器 | 当前型号 | 当前型号 |
TPS2530DBVT 德州仪器 | 完全替代 | TPS2530DBVR和TPS2530DBVT的区别 |
