TEXAS INSTRUMENTS TPS54327DDAR 直流-直流开关降压, 逐步递降稳压器, 可调, 4.5V-18V输入, 760mV-7V/3A输出, 700kHz, SOIC-8 新
The TPS54327 device is an adaptive on-time D-CAP2™ mode synchronous buck converter. TheTPS54327 enables system designers to complete the suite of various end equipments power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54327 uses the D-CAP2 mode control which provides a fast transient response with no external compensation components. The TPS54327 also has a proprietary circuit that enables the device to adopt to both low equivalent series resistance ESR output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 18-V VIN input. The output voltage can be programmed between 0.76 V and 7 V. The device also features an adjustable soft start time. The TPS54327 is available in the 8-pin DDA package and 10-pin DRC, and is designed to operate from 40°C to 85°C.
输出接口数 1
输出电压 0.76V ~ 7V
输出电流 3 A
针脚数 8
静态电流 800 µA
调节输出数 1
开关频率 700 kHz
拓扑结构 Buck
开关电流 4.2 A
输入电压Max 18 V
输入电压Min 4.5 V
输出电压Max 7 V
输出电压Min 760 mV
输出电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5 V
输入电压 4.5V ~ 18V
安装方式 Surface Mount
引脚数 8

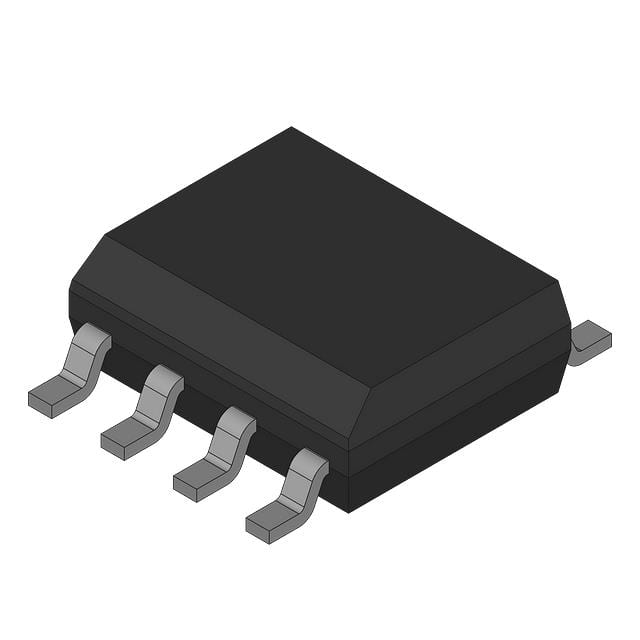

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS54327DDAR TI 德州仪器 | 当前型号 | 当前型号 |
TPS54327DDA 德州仪器 | 完全替代 | TPS54327DDAR和TPS54327DDA的区别 |
