250mA低压差线性稳压器
Control the voltage level of your circuit with this LDO linear regulator from Texas Instruments. It has an overall accuracy of ±3 %. Its typical dropout voltage at current is 0.14@250mA V. This device has a maximum power dissipation of 904 mW. This voltage regulation device"s single output can produce a current up to 0.25 A. It only needs a voltage of at least 2.7 V while not exceeding 10 V to effectively power your circuit. With an adjustable output that has a voltage of 1.25 to 5.5 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.5%Typ and line regulation of 0.01%/VTyp. Its maximum power dissipation is 904 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
输出接口数 1
输入电压DC 10.0V max
输出电压 1.25V ~ 5.5V
输出电流 250 mA
耗散功率 0.904 W
静态电流 30.0 µA
输出电容类型 Tantalum
跌落电压 140 mV
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Max 5.5 V
输出电压Min 1.2 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 904 mW
精度 ±3 %
输入电压 2.7V ~ 10V
安装方式 Surface Mount

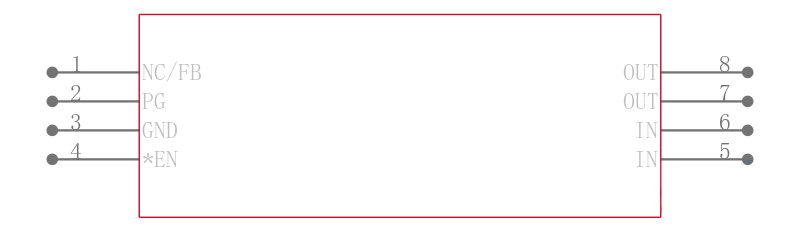

引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS76601D TI 德州仪器 | 当前型号 | 当前型号 |
TPS76601DG4 德州仪器 | 完全替代 | TPS76601D和TPS76601DG4的区别 |
TPS76601DR 德州仪器 | 类似代替 | TPS76601D和TPS76601DR的区别 |
TPS76601DRG4 德州仪器 | 类似代替 | TPS76601D和TPS76601DRG4的区别 |
