TPS7B6950QDCYRQ1 编带
The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V VI operations. With only 15-µA typical quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications.
The devices feature an integrated short-circuit and overcurrent protection. The TPS7B69xx-Q1 device operates over a –40°C to 125°C temperature range. Because of these features, the TPS7B6925-Q1, TPS7B6933-Q1, and TPS7B6950-Q1 devices are well suited in power supplies for various automotive applications.
输出接口数 1
输出电压 5 V
输出电流 150 mA
供电电流 25 µA
静态电流 15.0 µA
输出电容类型 Ceramic
跌落电压 0.45V @100mA
调节输出数 1
输入电压Max 40 V
输入电压Min 5.5 V
输出电压Min 5 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±3 %
输出通道数 1
输入电压 5.5V ~ 40V
安装方式 Surface Mount
引脚数 4

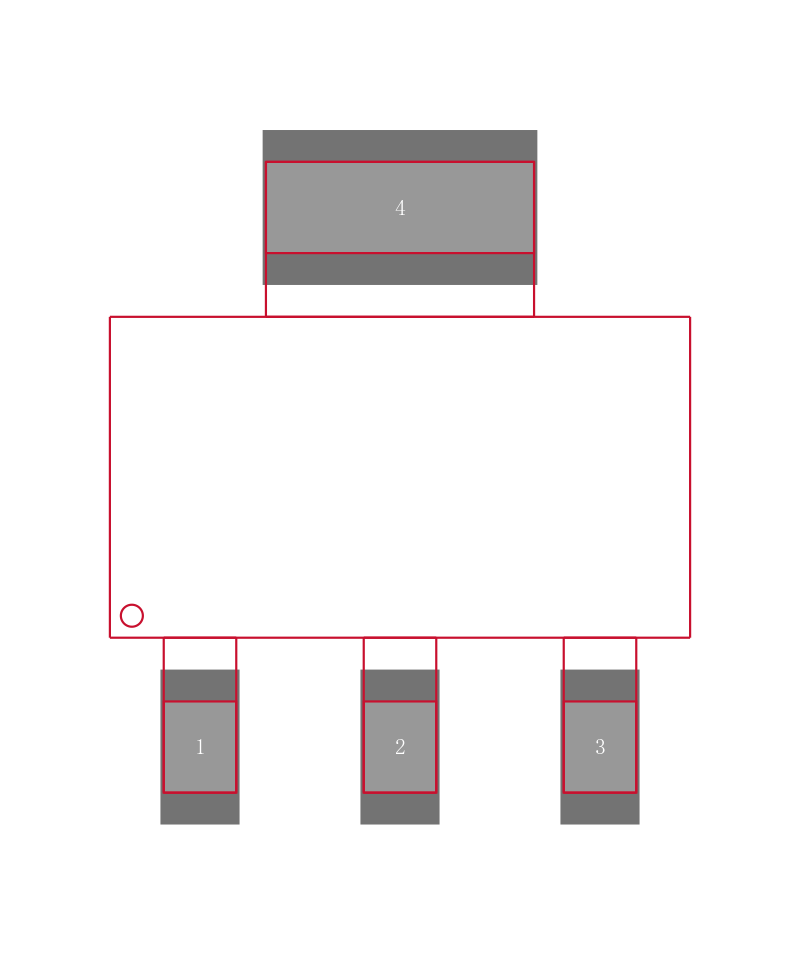

封装 TO-261-4
封装 TO-261-4
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
