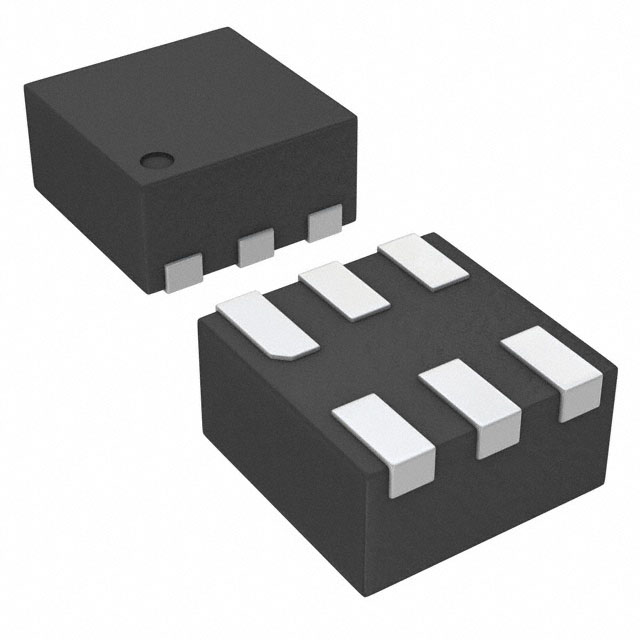

250毫安,超低IQ ,快速瞬态响应,射频低压差线性稳压器 250mA, Ultralow IQ, Fast Transient Response, RF LOW-DROPOUT LINEAR REGULATOR
PMIC - 稳压器 - 线性 正 固定 1 输出 250mA 6-WSON(1.5x1.5)
得捷:
IC REG LINEAR 2.85V 250MA 6WSON
立创商城:
TPS727285DSER
德州仪器TI:
250-mA, ultra-low-IQ, low-dropout voltage regulator with enable
艾睿:
Say goodbye to unstable voltages with this LDO TPS727285DSER linear regulator from Texas Instruments. This device has a maximum power dissipation of 485 mW. It has an overall accuracy of ±1Typ %. Its typical dropout voltage at current is 0.0065@10mA|0.0325@50mA|0.065@100mA|0.13@200mA|0.1625@250mA V. This voltage regulation device&s;s single output can produce a current up to 0.25 A. With a small input voltage of 2 V and a max of 5.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 2.85 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 20uV/mATyp and line regulation of 8uV/VTyp. Its maximum power dissipation is 485 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its polarity is positive. The maximum dropout voltage is 0.2@200mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 2.85V 0.25A 6-Pin WSON T/R
Chip1Stop:
Single Channel LDO 250mA, Ultralow IQ, Fast Transient Response, RF Low-Dropout Linear Regulator LDO Regulator Pos 2.85V 0.25A 6-Pin WSON T/R
Verical:
LDO Regulator Pos 2.85V 0.25A 6-Pin WSON T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.85V 250mA 6-WSON 1.5x1.5
输出接口数 1
输出电压 2.85 V
输出电流 250 mA
供电电流 110µA ~ 130µA
耗散功率 0.485 W
静态电流 9.00 µA
输出电容类型 Ceramic
跌落电压 0.163V @250mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2 V
输出电压Min 2.85 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 485 mW
精度 2 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 6
封装 WSON-6
封装 WSON-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS727285DSER TI 德州仪器 | 当前型号 | 当前型号 |
TPS727285DSET 德州仪器 | 类似代替 | TPS727285DSER和TPS727285DSET的区别 |
