TPS62080DSGR

1.2A高效降压转换器，具有贪睡模式 1.2A High Efficient Step Down Converter with Snooze Mode

DESCRIPON

The TPS6208x devices are a family of high frequency synchronous step down converters. With an input voltage range of 2.3V to 6.0V, common battery technologies are supported. Alternatively, the device can be used for low voltage system power rails.

1FEATURES

• DCS-Control

TM

Architecture for Fast Transient

Regulation

• Snooze Mode for 6.5µA Ultra Low Quiescent Current

• 2.3V to 6.0V Input Voltage Range

• Supports High Output Capacitance up to 100µF

• 100% Duty Cycle for Lowest Dropout

• Power Save Mode for Light Load Efficiency

• Output Discharge Function

• Short Circuit Protection

• Power Good Output

• Thermal Shutdown

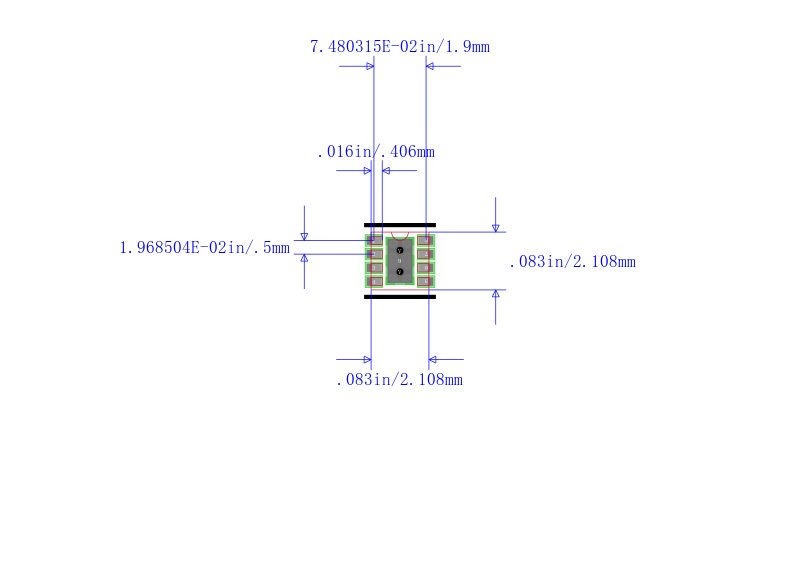

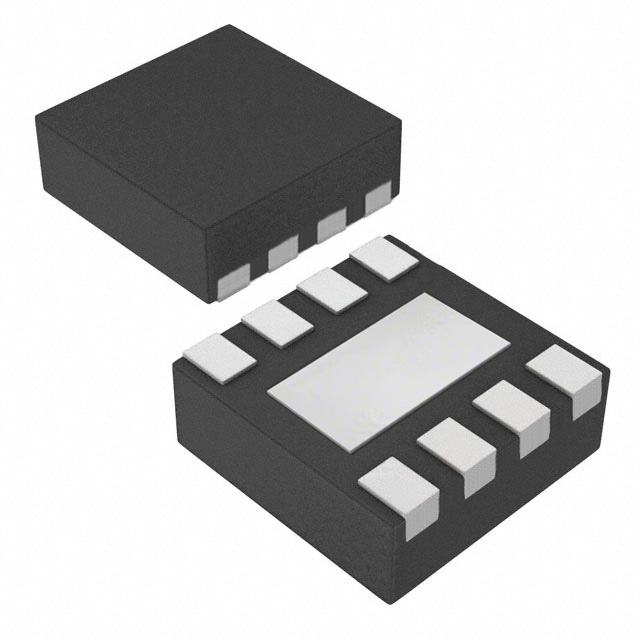

• Available in 2x2mm 8-Pin SON Package

APPLICATIONS

• Battery Powered Portable Devices

• Point of Load Regulators

• System Power Rail Voltage Conversion
