250毫安,超低IQ ,快速瞬态响应,射频低压差线性稳压器 250mA, Ultralow IQ, Fast Transient Response, RF LOW-DROPOUT LINEAR REGULATOR
PMIC - 稳压器 - 线性 正 固定 输出 250mA 6-WSON(1.5x1.5)
立创商城:

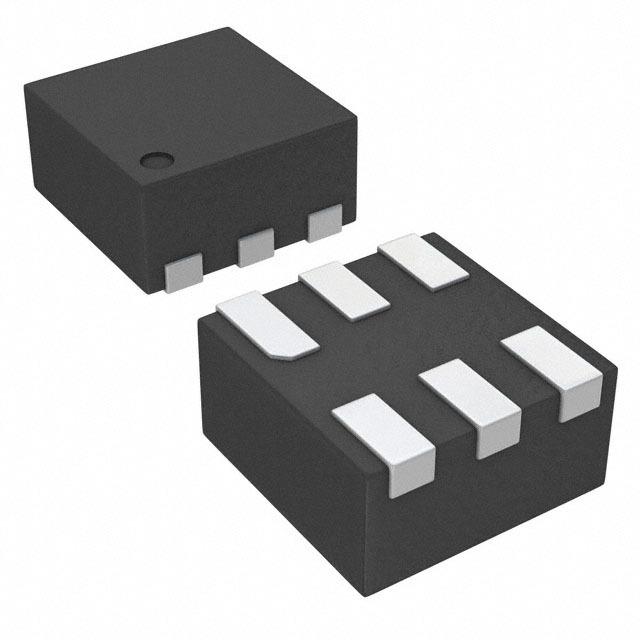

TPS72710DSER
德州仪器TI:
250-mA, ultra-low-IQ, low-dropout voltage regulator with enable
得捷:
IC REG LINEAR 1V 250MA 6WSON
贸泽:
LDO Voltage Regulators 250MA,ULTRA-LOW IQ RF LDO LINEAR REG
艾睿:
Make a theoretical system actual by providing stable voltages with this LDO TPS72710DSER linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.065@100mA|0.13@200mA|0.163@250mA V. It has an overall accuracy of ±1Typ %. This device has a maximum power dissipation of 485 mW. This voltage regulation device&s;s single output can produce a current up to 0.25 A. Using the part will provide the power your application needs by requiring a voltage only of 2 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 1 V, this is power management at its best. At a load regulation of 20uV/mATyp and line regulation of 8uV/VTyp your circuit is capable of maintaining a constant voltage level at your output. Its maximum power dissipation is 485 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 1V 0.25A 6-Pin WSON T/R
Verical:
LDO Regulator Pos 1V 0.25A 6-Pin WSON T/R
输出接口数 1
输出电压 1 V
输出电流 250 mA
耗散功率 194 mW
静态电流 0.0079 mA
输出电容类型 Ceramic
跌落电压 130 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min 40 ℃
耗散功率Max 485 mW
精度 ±1 %
输入电压 2V ~ 5.5V
安装方式 Surface Mount
引脚数 6
封装 WFDFN-6
封装 WFDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS72710DSER TI 德州仪器 | 当前型号 | 当前型号 |
TPS72710DSET 德州仪器 | 类似代替 | TPS72710DSER和TPS72710DSET的区别 |
