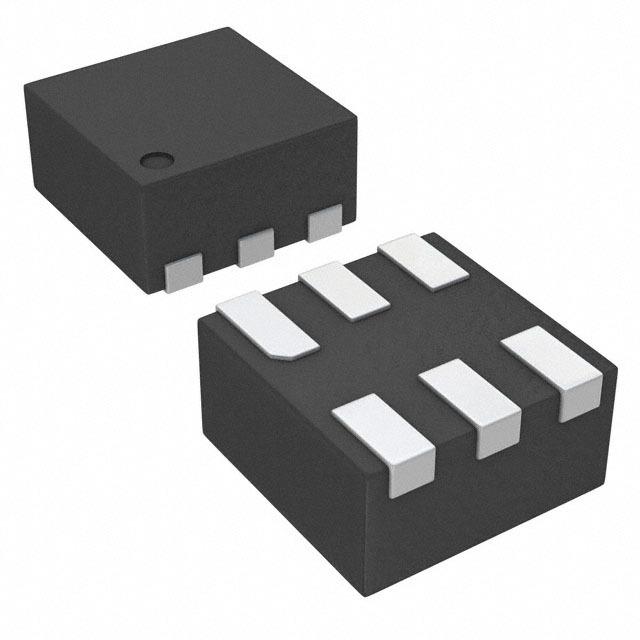

TPS72719DSER

250毫安，超低IQ ，快速瞬态响应，射频低压差线性稳压器 250mA, Ultralow IQ, Fast Transient Response, RF LOW-DROPOUT LINEAR REGULATOR

PMIC - 稳压器 - 线性 正 固定 1 输出 250mA 6-WSON（1.5x1.5）

立创商城:
TPS72719DSER

德州仪器TI:
250-mA, ultra-low-IQ, low-dropout voltage regulator with enable

得捷:
IC REG LINEAR 1.9V 250MA 6WSON

贸泽:
LDO Voltage Regulators 200mA Ultralow IQ Fast Tran Res RF LDO

艾睿:
Keep the energy stable for every system by using this LDO TPS72719DSER linear regulator by Texas Instruments. This device has a maximum power dissipation of 485 mW. Its typical dropout voltage at current is 0.065@100mA|0.13@200mA|0.163@250mA V. It has an overall accuracy of ±1Typ %. This voltage regulation device&s;s single output can produce a current up to 0.25 A. With a small input voltage of 2 V and a max of 5.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.9 V, this is power management at its best. By operating at a load regulation of 20uV/mATyp and line regulation of 8uV/VTyp you can provide a constant voltage at your output. Its maximum power dissipation is 485 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.

Verical:
LDO Regulator Pos 1.9V 0.25A 6-Pin WSON T/R
