80毫瓦DIRECTPATH立体声耳机驱动器 80-mW DIRECTPATH STEREO HEADPHONE DRIVER
This class D amplifier from Texas Instruments is designed to reduce both power consumption and heat sink size requirements. Its maximum power dissipation is 1200 mW. It has a single input signal and a differential output signal. It has a maximum load resistance of 16 Ohm. It has a 2-channel stereo output. This audio amplifier has a temperature range of -40 °C to 85 °C. Its typical PSRR is 80 dB. This device uses a single power supply.
电源电压DC 4.50 V
供电电流 10 mA
通道数 2
耗散功率 1200 mW
输出功率 80 mW
增益 63.52 dB
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1200 mW
电源电压 1.8V ~ 4.5V
电源电压Max 4.5 V
电源电压Min 1.8 V
安装方式 Surface Mount

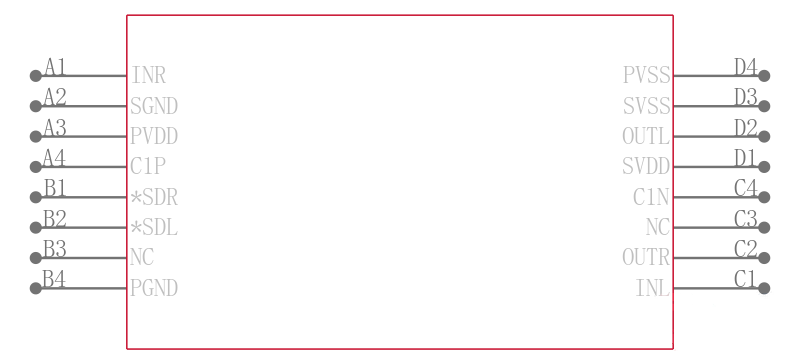

引脚数 16

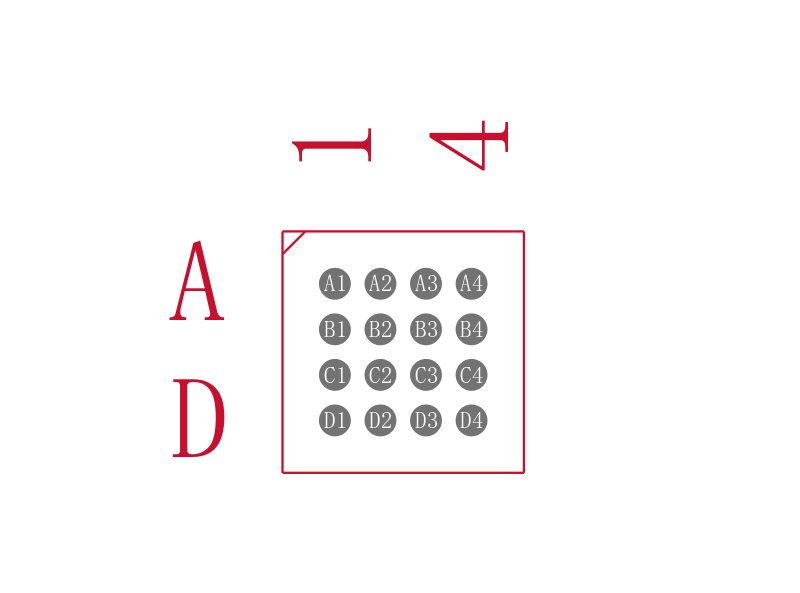

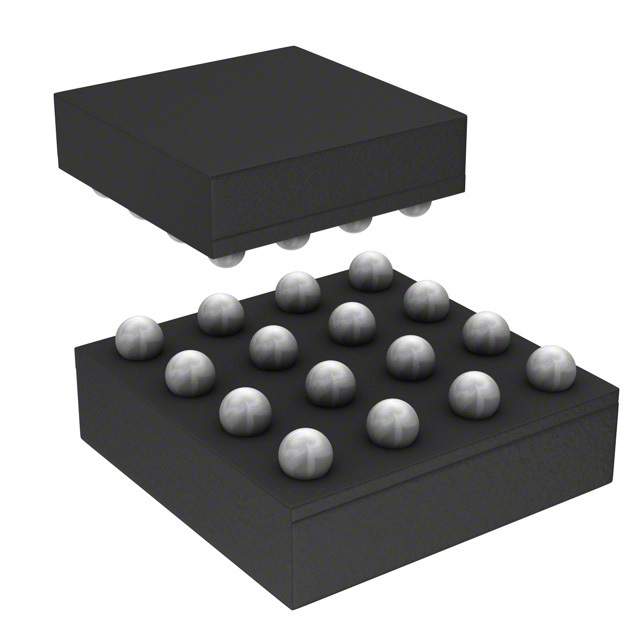

封装 DSBGA-16

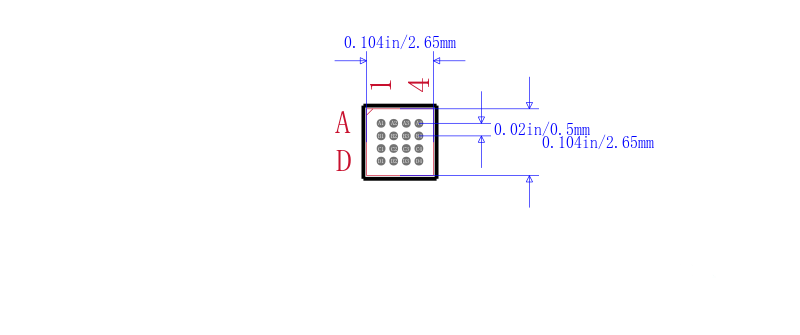

长度 2.3 mm
宽度 2.3 mm
高度 0.48 mm
封装 DSBGA-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPA4411YZHT TI 德州仪器 | 当前型号 | 当前型号 |
TPA4411YZHR 德州仪器 | 类似代替 | TPA4411YZHT和TPA4411YZHR的区别 |
TPA4411RTJT 德州仪器 | 功能相似 | TPA4411YZHT和TPA4411RTJT的区别 |
TPA4411MRTJR 德州仪器 | 功能相似 | TPA4411YZHT和TPA4411MRTJR的区别 |
