3.5 MHz的高效率升压转换器 3.5-MHz High Efficiency Step-Up Converter
升压 开关稳压器 IC 正 固定 5V 1 输出 600mA(开关) 6-UFBGA,DSBGA
得捷:
IC REG BOOST 5V 600MA 6DSBGA
立创商城:
升压型 Vin=3.2V~5.5V Vout=5V 600mA
德州仪器TI:
5V, 500mA, 4MHz Step-Up DC/DC Converter
贸泽:
开关稳压器 5V 500mA 4MHz Step- Up DC/DC Cnvrtr
艾睿:
Adjust the voltage level of your devices with this step up TPS61241YFFR DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 0.5 A. Use this part at voltages between 2.3 V and 5.5 V. With a fixed output that has a voltage of 5 V, this is power management at its best. This converter is 90min % efficient. Its switching regulator has a frequency of 3500Typ kHz. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This converter has an operating temperature range of -40 °C to 85 °C.
安富利:
Conv DC-DC Single Step Up 2.3V to 5.5V 6-Pin DSBGA T/R
Verical:
Conv DC-DC 2.3V to 5.5V Synchronous Step Up Single-Out 5V 0.5A 6-Pin DSBGA T/R
DeviceMart:
IC REG BST SYNC 5V 0.45A 6DSBGA
Win Source:
Boost Switching Regulator IC Positive Fixed 5V 1 Output 600mA Switch 6-UFBGA, DSBGA
输出接口数 1
输出电压 5 V
输出电流 450 mA
静态电流 30.0 µA
调节输出数 1
开关频率 3.5 MHz
拓扑结构 Boost
输入电压Max 5.5 V
输入电压Min 2.3 V
输出电压Min 5 V
输出电流Max 0.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.3V ~ 5.5V
安装方式 Surface Mount
引脚数 6

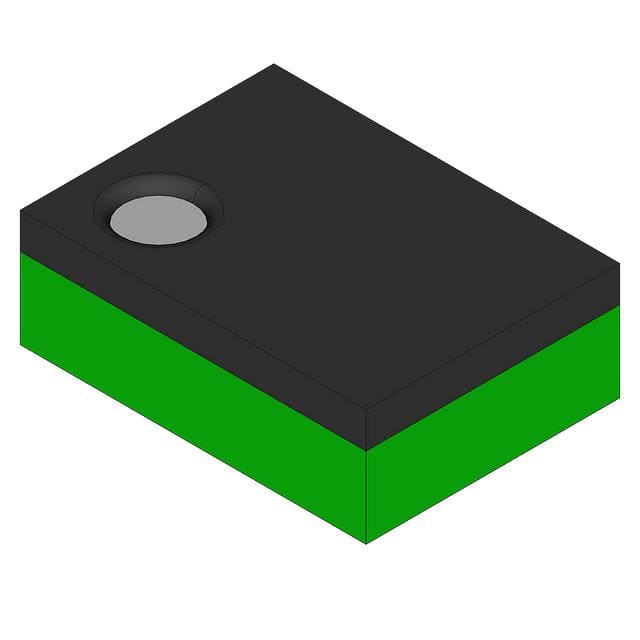

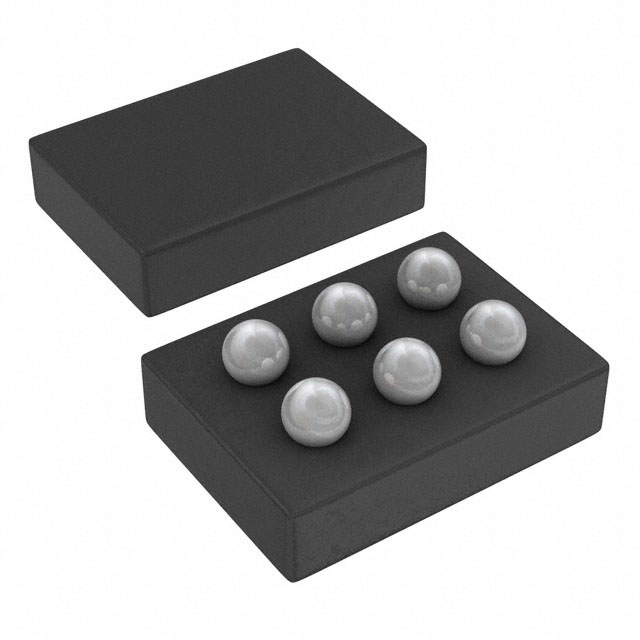

封装 DSBGA-6
封装 DSBGA-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS61241YFFR TI 德州仪器 | 当前型号 | 当前型号 |
TPS61241YFFT 德州仪器 | 类似代替 | TPS61241YFFR和TPS61241YFFT的区别 |
