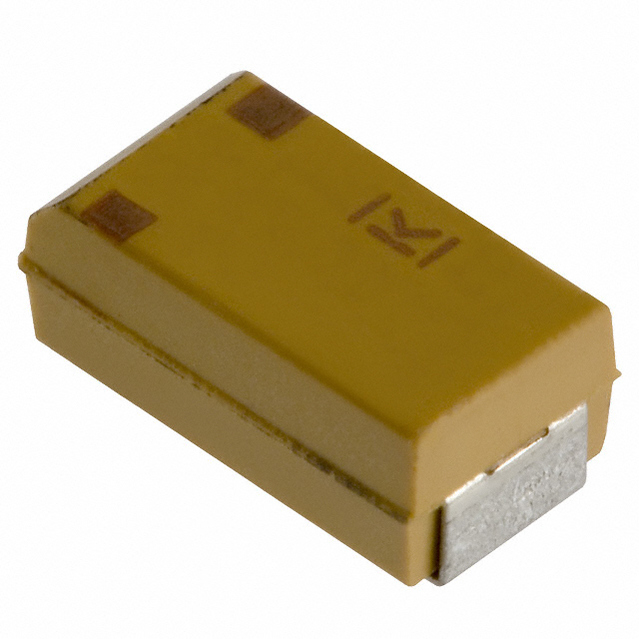

C 220uF ±20% 4V
Because of its high permittivity dielectric layer, this polymer electrolyte from Kemet is best-suited to pass low-frequency signals into various small products. It can withstand a voltage of 4 VDC. It has 2 terminals. Its capacitance value is 220uF. This product is 6 mm long, 2.5 mm tall and 3.2 mm deep. Its leakage current is 88 μA. This polymer electrolyte has an operating temperature range of -55 °C to 105 °C.
额定电压DC 4.00 V
电容 220 µF
等效串联电阻ESR 18mΩ @100kHz
容差 ±20 %
产品系列 T520
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 4 V
安装方式 Surface Mount
引脚数 2

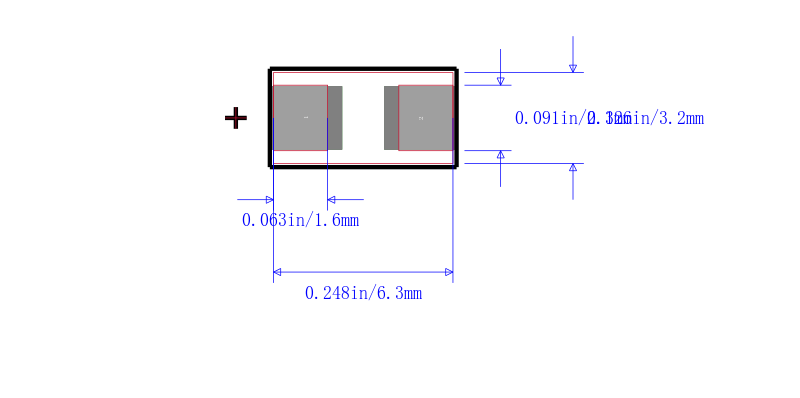

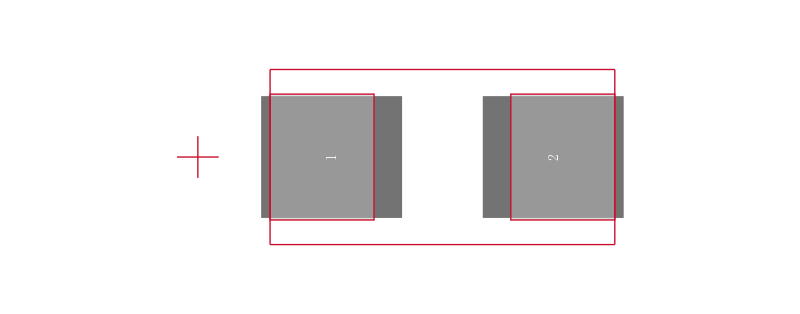

封装 6032
长度 6 mm
宽度 3.2 mm
高度 2.5 mm
封装 6032
介质材料 Tantalum
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
寿命(小时) 2000h @105℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
T520C227M004ATE018 KEMET Corporation 基美 | 当前型号 | 当前型号 |
T520C227M006ATE018 基美 | 类似代替 | T520C227M004ATE018和T520C227M006ATE018的区别 |
