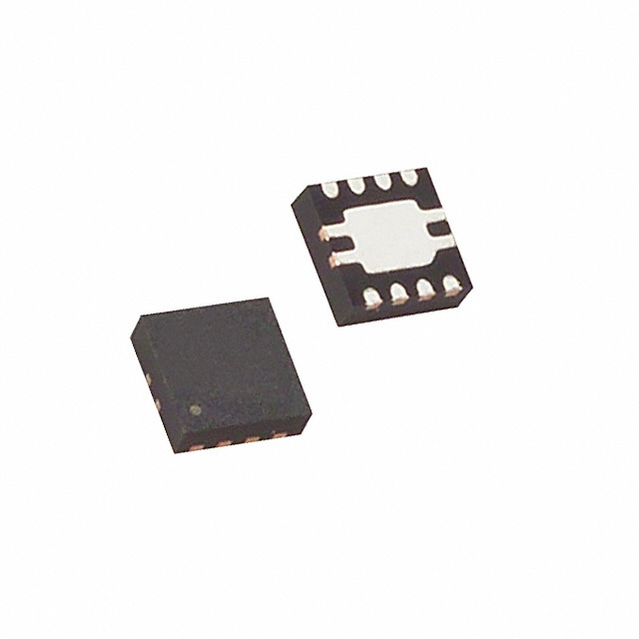

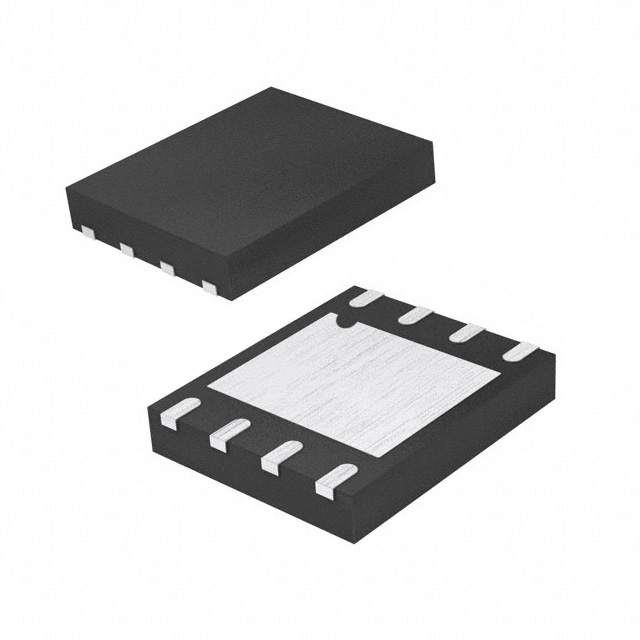

TEXAS INSTRUMENTS TPS73733QDRBRQ1 固定电压稳压器, LDO, 2.2V至5.5V, 130mV压差, 3.3V输出, 1A输出, VSON-8
The is a 3.3V fixed output low-dropout LDO Linear Regulator uses an NMOS pass element in a voltage-follower configuration. This topology is relatively insensitive to output capacitor value and ESR, allowing a wide variety of load configurations. Load transient response is excellent, even with a small 1µF ceramic output capacitor. The NMOS topology also allows very low dropout. The device family uses an advanced BiCMOS process to yield high precision while delivering very low dropout voltages and low ground pin current. Current consumption, when not enabled, is less than 20nA.
输出接口数 1
输出电压 3.3 V
输出电流 1 A
供电电流 400µA ~ 1.3mA
针脚数 8
耗散功率 2.5 W
静态电流 400 µA
输出电容类型 Ceramic
跌落电压 0.13V @1A
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Min 3.3 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 2500 mW
精度 ±1 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 8

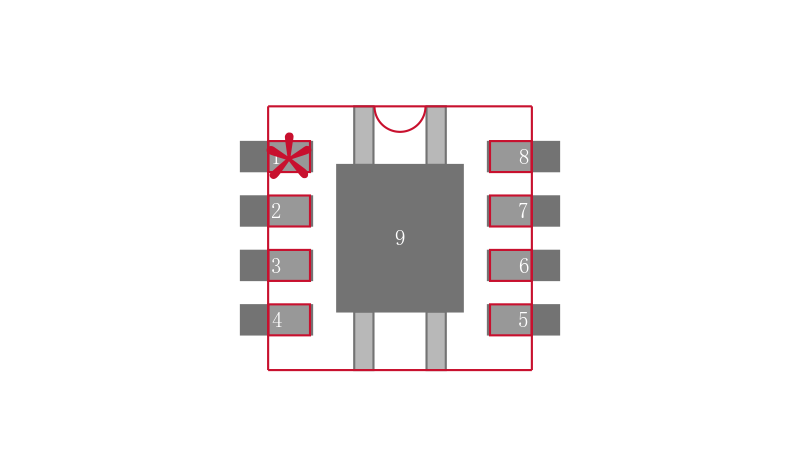

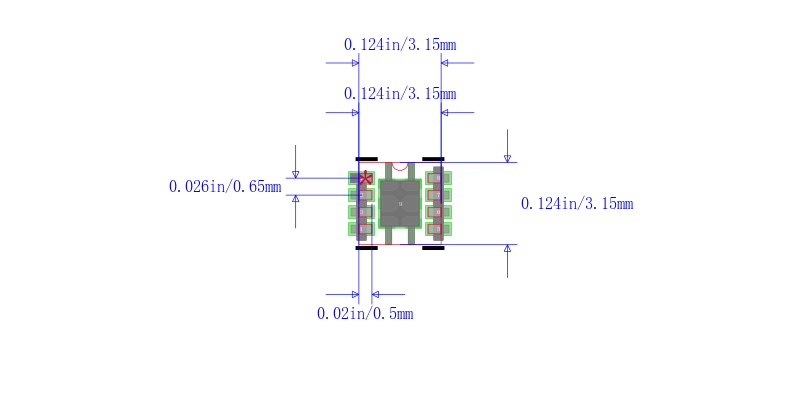

封装 VSON EP-8
长度 3 mm
宽度 3 mm
高度 0.88 mm
封装 VSON EP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73733QDRBRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TPS73633DRBR 德州仪器 | 类似代替 | TPS73733QDRBRQ1和TPS73633DRBR的区别 |
TPS73633DRBT 德州仪器 | 类似代替 | TPS73733QDRBRQ1和TPS73633DRBT的区别 |
TPS73633DRBTG4 德州仪器 | 类似代替 | TPS73733QDRBRQ1和TPS73633DRBTG4的区别 |
