TPS73525DRVR

500毫安，低静态电流，超低噪声，高PSRR低压降线性稳压器 500mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low-Dropout Linear Regulator

The TPS735 family of low-dropout LDO, low-power linear regulators offers excellent ac performance with very low ground current. High power-supply rejection ratio PSRR, low noise, fast start-up, and excellent line and load transient responses are provided while consuming a very low 46-μA typical ground current.

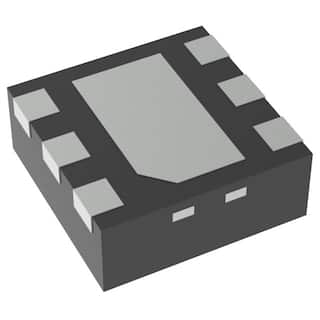

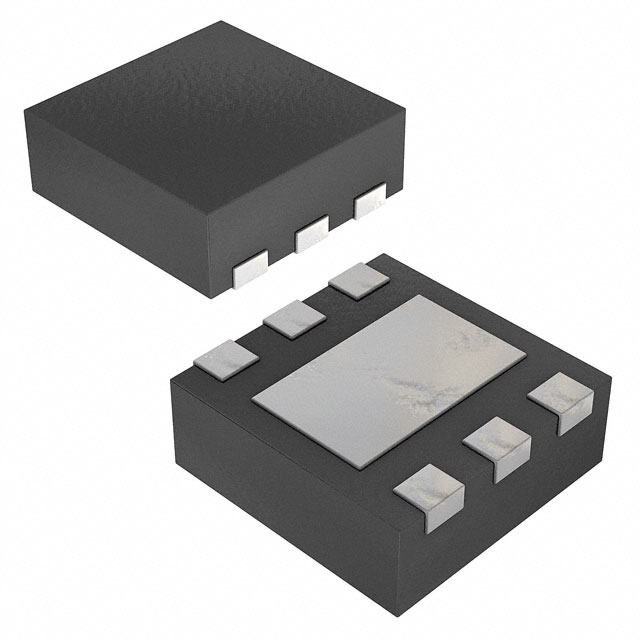

The TPS735 family of devices is stable with ceramic capacitors and uses an advanced BiCMOS fabrication process to yield a typical dropout voltage of 280 mV at 500-mA output. The TPS735 family of devices uses a precision voltage reference and feedback loop to achieve overall accuracy of 2% VOUT > 2.2 V over all load, line, process, and temperature variations. This family of devices is fully specified from TA = –40°C to 125°C and is offered in a low-profile, 3-mm × 3-mm SON-8 package and a 2-mm x 2-mm SON-6 package.
