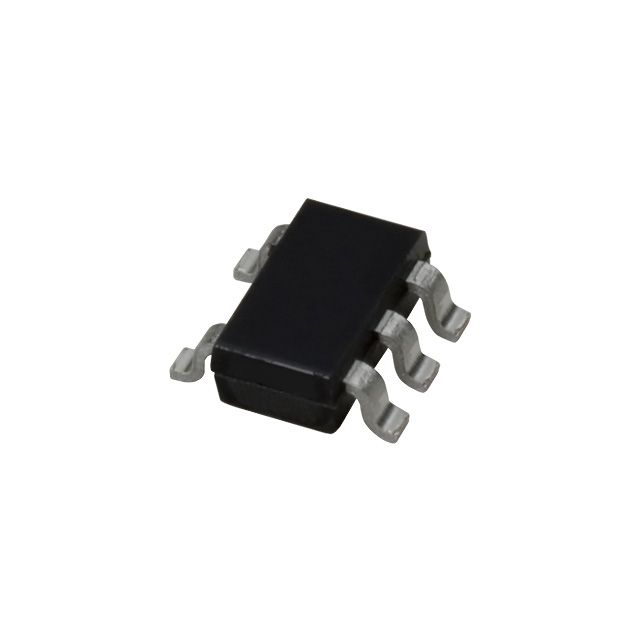

TEXAS INSTRUMENTS TPS3824-30DBVR 芯片, 微处理器监控器, 15uA, 5.5V, SOT23-5
The is a Supervisor Circuit with active-low and active-high push-pull output. The supervisor provides circuit initialization and timing supervision, primarily for DSP and processor-based systems. During power on, /RESET asserts when the supply voltage VDD becomes greater than 1.1V. Thereafter, the supply voltage supervisor monitors VDD and keeps /RESET active low as long as VDD remains less than the threshold voltage, VIT-. An internal timer delays the return of the output to the inactive state high to ensure proper system reset. The delay time, td, starts after VDD has risen above the threshold voltage VIT-+ VHYS. When the supply voltage drops below the threshold voltage VIT-, the output becomes active low again. No external components are required. It has a fixed-sense threshold voltage, VIT-, set by an internal voltage divider.
电源电压DC 5.50V max
输出电流 -10.0 mA to 10.0 mA
供电电流 0.025 mA
针脚数 5
耗散功率 0.437 W
静态电流 15.0 µA
阈值电压 2.63 V
复位电压Min 2.57 V
复位电压Max 2.69 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 437 mW
电源电压Max 5.5 V
电源电压Min 1.1 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, 车用, 传感与仪器, 计算机和计算机周边, 无线, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
