降压直流/直流转换器(集成开关)最大输入高达 6V,TPS 系列,Texas Instruments### 直流/直流开关调节器转换器(集成开关),Texas InstrumentsTexas Instruments 的此系列高度集成的高效开关稳压器包括步升(升压)、步降(降压)、步升/降(增压/降压)和反相类型,为每个直流稳压器应用提供高效的解决方案。
降压直流/直流转换器(集成开关)最大输入高达 6V,TPS 系列,Texas Instruments
立创商城:
降压型 Vin=2.3V~4.8V Vout=1.8V 500mA
德州仪器TI:
500-mA, 6-MHz High-Efficiency Step-Down Converter, Vout=1.8V
得捷:
IC REG BUCK 1.8V 500MA 6DSBGA
欧时:
Texas Instruments TPS62671YFDT 降压 开关稳压器, 2.3 → 4.8 V输入, 500mA最大输出
艾睿:
Adjust the voltage level of your devices with this step down TPS62671YFDT DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 0.5 A. Use this part at voltages between 2.3 V and 4.8 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. This converter is 92 % efficient. Using a load regulation of -0.00045%/mATyp and line regulation of 0.23%/VTyp is needed for a programmable DC power supply. This part offers a switching frequency of 6600 kHz in order to work properly. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This converter has an operating temperature range of -40 °C to 85 °C.
Chip1Stop:
Conv DC-DC Single Step Down 2.3V to 4.8V 6-Pin DSBGA T/R
Verical:
Conv DC-DC 2.3V to 4.8V Synchronous Step Down Single-Out 1.8V 0.5A 6-Pin DSBGA T/R
DeviceMart:
IC REG BCK SYNC 1.8V 0.5A 6DSBGA
输出接口数 1
输出电压 1.8 V
输出电流 500 mA
静态电流 17.0 µA
调节输出数 1
开关频率 6 MHz
拓扑结构 Buck
输入电压Max 4.8 V
输入电压Min 2.3 V
输出电压Max 1.8 V
输出电压Min 1.8 V
输出电流Max 500 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.3V ~ 4.8V
安装方式 Surface Mount
引脚数 6

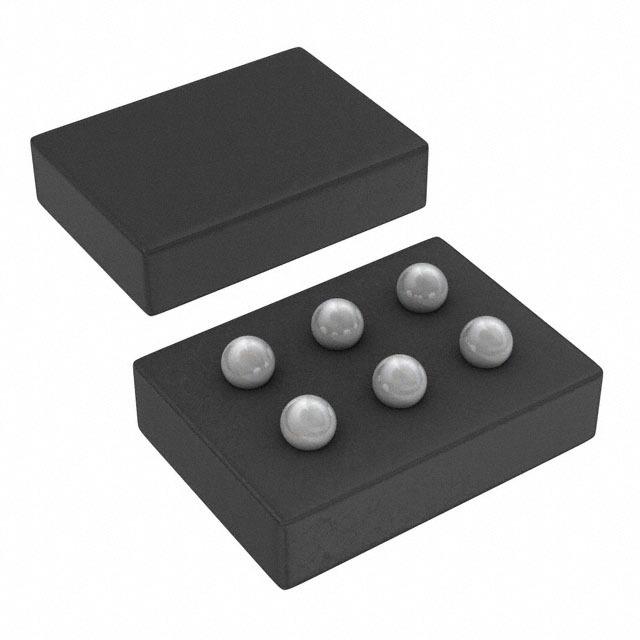

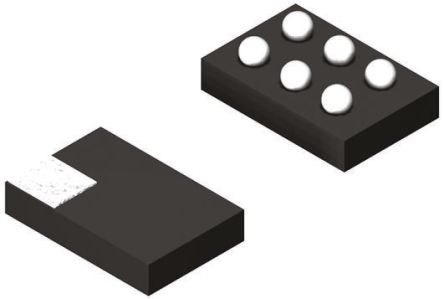

封装 XFBGA-6
长度 1.33 mm
宽度 0.956 mm
高度 0.225 mm
封装 XFBGA-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS62671YFDT TI 德州仪器 | 当前型号 | 当前型号 |
TPS62671YFDR 德州仪器 | 类似代替 | TPS62671YFDT和TPS62671YFDR的区别 |
TPS62674YFDT 德州仪器 | 类似代替 | TPS62671YFDT和TPS62674YFDT的区别 |
TPS62674YFDR 德州仪器 | 功能相似 | TPS62671YFDT和TPS62674YFDR的区别 |
