微功率电源电压监控器 Micropower Supply Voltage Supervisors
This supply voltage supervisory voltage monitor IC from Texas Instruments protects your sensitive components from hazardous conditions. This device has a maximum power dissipation of 525 mW. Its maximum power dissipation is 525 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a typical reset threshold voltage of 2.93 V, with a minimum of 2.86 V and a maximum of 3 V. This device has a minimum operating supply voltage of 2 V and a maximum of 6 V. This voltage supervisor IC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 2.00V min
输出电流 10 mA
供电电流 0.016 mA
耗散功率 525 mW
静态电流 9.00 µA
阈值电压 2.93 V
输出电流Max 10 mA
复位电压Min 2.86 V
复位电压Max 3 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 525 mW
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 8

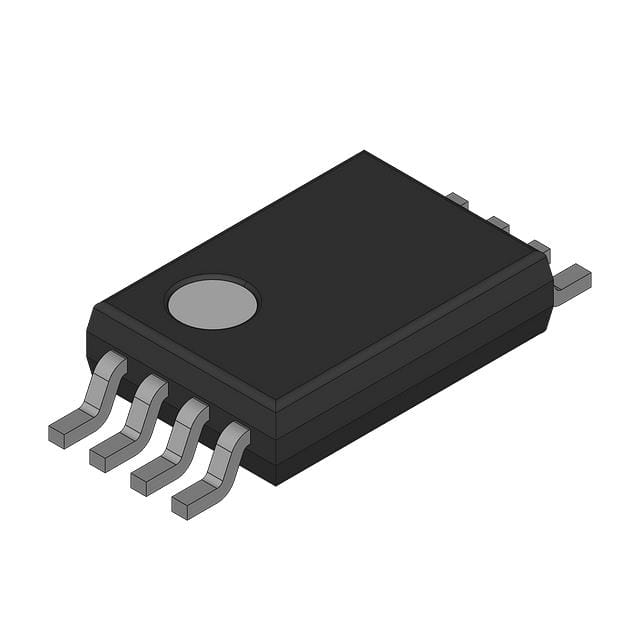

封装 TSSOP-8
长度 3 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TLC7733IPWR TI 德州仪器 | 当前型号 | 当前型号 |
TLC7733IPW 德州仪器 | 类似代替 | TLC7733IPWR和TLC7733IPW的区别 |
TLC7733QPW 德州仪器 | 类似代替 | TLC7733IPWR和TLC7733QPW的区别 |
TLC7733QPWR 德州仪器 | 类似代替 | TLC7733IPWR和TLC7733QPWR的区别 |
