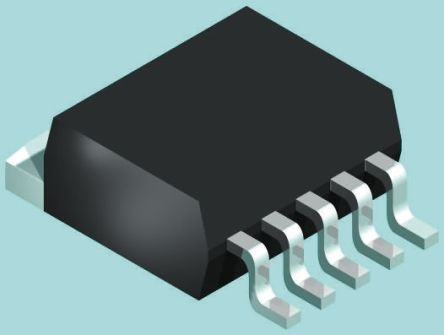

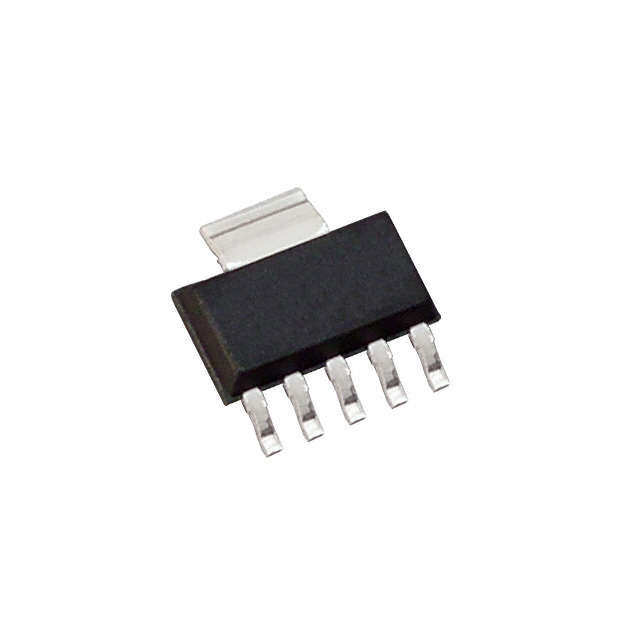

TPS73233DCQ

LDO（低压降）线性稳压器，250mA，Texas Instruments### LDO（低压降）线性稳压器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

LDO（低压降）线性稳压器，250mA，Texas Instruments

立创商城:
TPS73233DCQ

德州仪器TI:
250-mA, high-accuracy, ultra-low-dropout voltage regulator with reverse current protection & enable

得捷:
IC REG LIN 3.3V 250MA SOT223-6

欧时:
Texas Instruments TPS73233DCQ LDO 稳压器, 3.3 V输出, 250mA最大输出, ±0.5%精确度, 5+Tab引脚 SOT-223封装

艾睿:
Keep the energy stable for every system by using this LDO TPS73233DCQ linear regulator by Texas Instruments. Its typical dropout voltage at current is 0.04@250mA V. It has an overall accuracy of ±0.5 %. This voltage regulation device&s;s single output can produce a current up to 0.25 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 1.7 V that does not exceed 5.5 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Using a load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp is needed for a programmable DC power supply. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.15@250mA V.

安富利:
LDO Regulator Pos 3.3V 0.25A 6-Pin5+Tab SOT-223 Tube

Chip1Stop:
Single Channel LDO Single Output LDO, 250mA, Fixed3.3V, Fast Transient Response, Reverse Current Protection LDO Regulator Pos 3.3V 0.25A 6-Pin5+Tab SOT-223 Tube

Verical:
LDO Regulator Pos 3.3V 0.25A 6-Pin5+Tab SOT-223 Tube

Newark:
# TEXAS INSTRUMENTS  TPS73233DCQ  Fixed LDO Voltage Regulator, 1.7V to 5.5V In, 40mV Dropout, 3.3V/250mA Out, SOT-223-6

DeviceMart:
IC REG LDO 3.3V .25A SOT223-6
