TPS22959DNYT

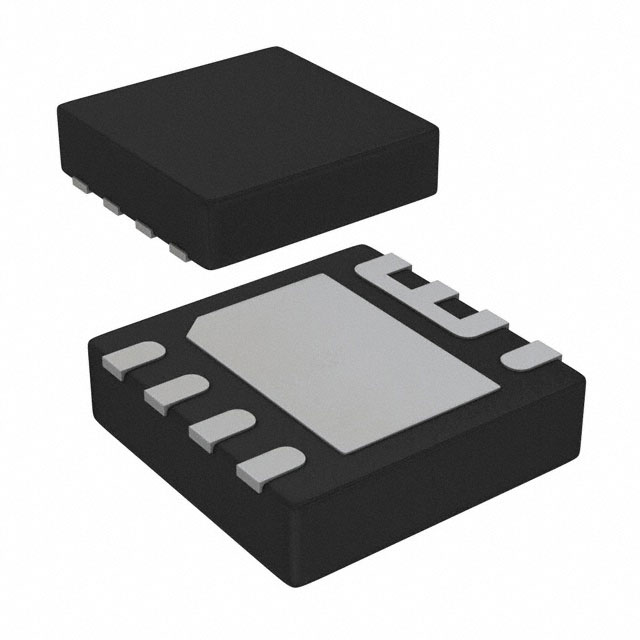

TPS22959DNYT图片1

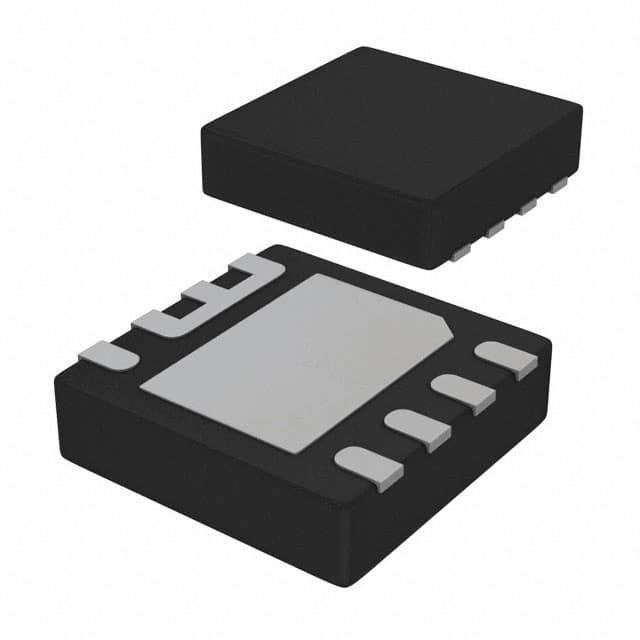

TPS22959DNYT图片2
TPS22959DNYT图片3
TPS22959DNYT图片4
TPS22959DNYT图片5
TPS22959DNYT概述

具有输出放电功能的 5.5V、15A、4.4mΩ 负载开关 8-WSON -40 to 85

Manually change states with this power switch by Texas Instruments. This charge controller has single output. This charge controller has an input voltage of 0.8 to 5.5 V. It features 0.0047 Ohm switch on resistance. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This charge controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.

TPS22959DNYT中文资料参数规格
技术参数

输出接口数 1

输出电流 15 A

静态电流 20.4 µA

输出电流Max 15 A

输出电流Min 15 A

工作温度Max 85 ℃

工作温度Min -40 ℃

输入电压 0.8V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 PowerWDFN-8

外形尺寸

封装 PowerWDFN-8

物理参数

工作温度 -40℃ ~ 105℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

TPS22959DNYT引脚图与封装图
TPS22959DNYT引脚图
TPS22959DNYT封装图
TPS22959DNYT封装焊盘图
在线购买TPS22959DNYT
型号: TPS22959DNYT
制造商: TI 德州仪器
描述:具有输出放电功能的 5.5V、15A、4.4mΩ 负载开关 8-WSON -40 to 85
替代型号TPS22959DNYT
型号/品牌 代替类型 替代型号对比

TPS22959DNYT

TI 德州仪器

当前型号

当前型号

TPS22959DNYR

德州仪器

功能相似

TPS22959DNYT和TPS22959DNYR的区别
