TLE4274GV85ATMA1

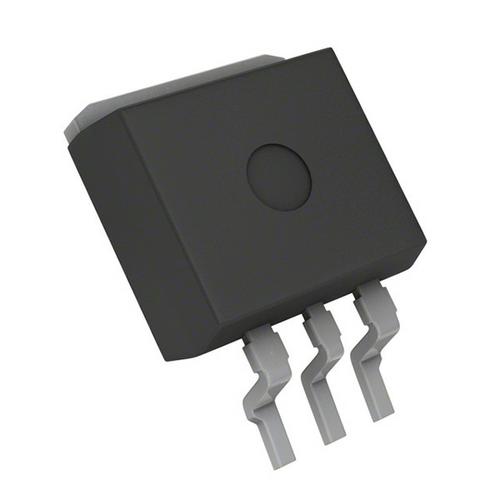

LDO Regulator Pos 8.5V 0.4A 3Pin2+Tab TO-263

Description:

The TLE 4274 is a low drop voltage regulator available in a TO220, TO252 and TO263 package. The IC regulates an input voltage up to 40 V to V Qrated = 5.0 V V50, 8.5 V V85 and 10 V V10. The maximum output current is 400 mA. The IC is short-circuit proof and incorporates temperature protection that disables the IC at over temperature. A 3.3 V and 2.5 V version is also available. For information about the low output voltage types please refer to the data sheet TLE4274 / 3.3 V; 2.5 V.

Summary of Features:

.

Output voltage 5 V, 8.5 V or 10 V

.

Output voltage tolerance ≤ ±4%

.

Current capability 400 mA

.

Low-drop voltage

.

Very low current consumption

.

Short-circuit proof

.

Reverse polarity proof

.

Suitable for use in automotive electronics

.

Green Product RoHS compliant version of TLE 4274

.

AEC qualified

.

Wide Temperature Range  40 °C ≤ T j  ≤ 150 °C

Benefits:

.

Robust protection features

.

Wide input operation and temperature range
