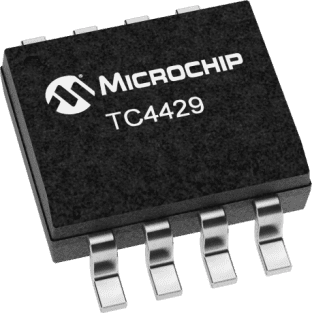

TC4429系列 18V 2.5Ohm 6A 峰值 单通道 输出 MOSFET驱动器-SOIC-8
TC4429 MOSFET 驱动器
欧时:
Microchip TC4429VOA MOSFET 功率驱动器, 6A, 4.5 → 18 V电源, 8引脚 SOIC封装
得捷:
IC GATE DRVR LOW-SIDE 8SOIC
立创商城:
TC4429VOA
贸泽:
门驱动器 6A Sngl
e络盟:
MOSFET驱动器, 低压侧, 4.5 V至18 V电源, 6 A输出, 55 ns延迟, SOIC-8
艾睿:
If you are working with high voltage transistors, implement this TC4429VOA power driver from Microchip Technology to switch states. This device has a maximum propagation delay time of 75 ns and a maximum power dissipation of 470 mW. Its maximum power dissipation is 470 mW. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This gate driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device has a minimum operating supply voltage of 4.5 V and a maximum of 18 V.
Allied Electronics:
6A Sngl MOSFET Drvr8 SOIC 3.90mm.150in TUBE
安富利:
MOSFET DRVR 6A 1-OUT Lo Side Inv 8-Pin SOIC N Tube
Chip1Stop:
Driver 6A 1-OUT Low Side Inv Automotive 8-Pin SOIC N Tube
TME:
Driver; MOSFET gate driver; 6A; Channels:1; 4.5÷18V; SO8
Verical:
Driver 6A 1-OUT Low Side Inv Automotive 8-Pin SOIC N Tube
电源电压DC 4.50V min
工作电压 4.5V ~ 18V
上升/下降时间 25 ns
输出接口数 1
输出电流 6 A
供电电流 3.00 mA
通道数 1
针脚数 8
耗散功率 470 mW
上升时间 35 ns
下降时间 35 ns
下降时间Max 35 ns
上升时间Max 35 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 470 mW
电源电压 4.5V ~ 18V
电源电压Max 18 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8

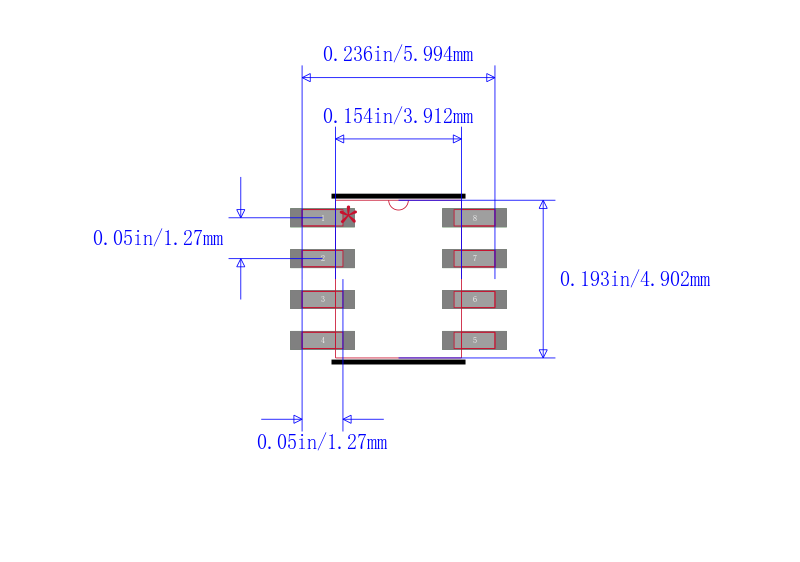

封装 SOIC-8
长度 5 mm
宽度 3.99 mm
高度 1.55 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC4429VOA Microchip 微芯 | 当前型号 | 当前型号 |
TC4422AVOA 微芯 | 类似代替 | TC4429VOA和TC4422AVOA的区别 |
TC4420EOA 微芯 | 类似代替 | TC4429VOA和TC4420EOA的区别 |
TC4452VOA 微芯 | 类似代替 | TC4429VOA和TC4452VOA的区别 |
