限流配电开关 CURRENT-LIMITED, POWER-DISTRIBUTION SWITCHES
Use this high side switch and usb power distribution switch USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. Use this part at voltages between 2.7 V and 5.5 V. Its current limit is 0.75 to 1.25 A. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This USB powered network switch has an operating temperature range of -40 °C to 85 °C.
输出接口数 2
输出电流 500 mA
耗散功率 1600 mW
上升时间 600 µs
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电流Max 500 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1600 mW
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 8

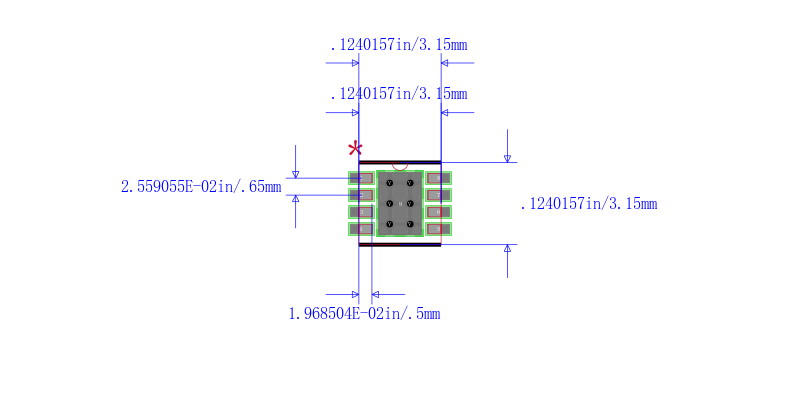

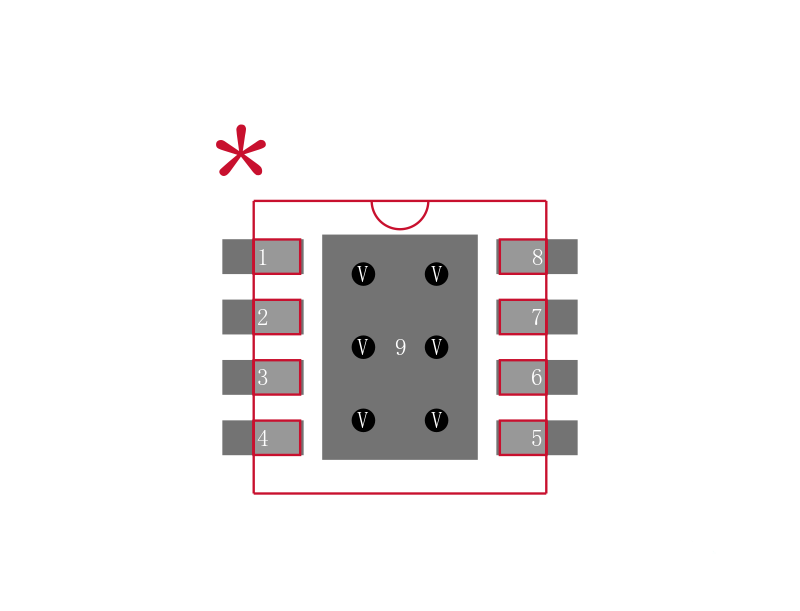

封装 VSON EP-8
封装 VSON EP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2042BDRBR TI 德州仪器 | 当前型号 | 当前型号 |
TPS2042BDRBT 德州仪器 | 类似代替 | TPS2042BDRBR和TPS2042BDRBT的区别 |
ST2042BDR 意法半导体 | 类似代替 | TPS2042BDRBR和ST2042BDR的区别 |
ST2042BD 意法半导体 | 类似代替 | TPS2042BDRBR和ST2042BD的区别 |
