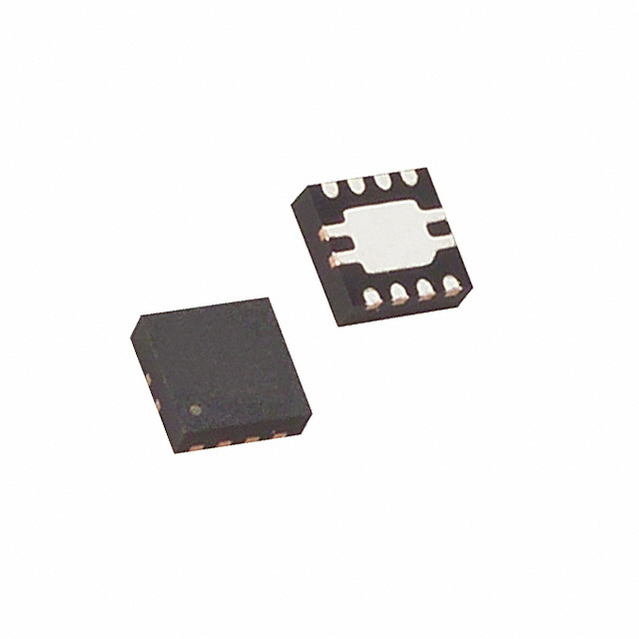

1A低压降稳压器具有反向电流保护 1A Low-Dropout Regulator with Reverse Current Protection
PMIC - 稳压器 - 线性 正 固定 输出 1A 8-SON(3x3)
得捷:
IC REG LINEAR 3V 1A 8SON
立创商城:
TPS73730DRBR
德州仪器TI:
1-A, ultra-low-dropout voltage regulator with reverse current protection & enable
艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO TPS73730DRBR linear regulator from Texas Instruments is perfect for you! Its typical dropout voltage at current is 0.13@1A V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 1 A. This will operate at a minimum voltage of 2.2 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. Using a load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp is needed for a programmable DC power supply. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its polarity is positive. The maximum dropout voltage is 0.5@1A V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 3V 1A 8-Pin VSON EP T/R
Verical:
LDO Regulator Pos 3V 1A 8-Pin VSON EP T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3V 1A 8-SON Exposed Pad 3x3
输出接口数 1
输出电压 3 V
输出电流 1 A
供电电流 400µA ~ 1.3mA
耗散功率 2500 W
静态电流 400 µA
输出电容类型 Ceramic
跌落电压 0.13V @1A
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Min 3 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤5.5 V
安装方式 Surface Mount

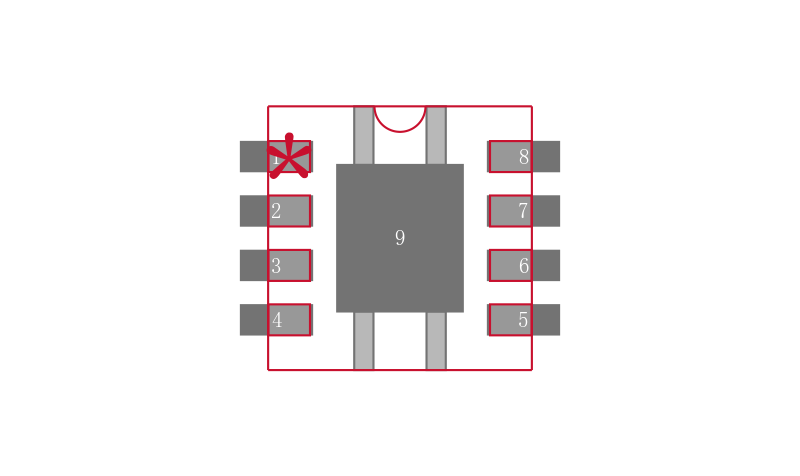

引脚数 8

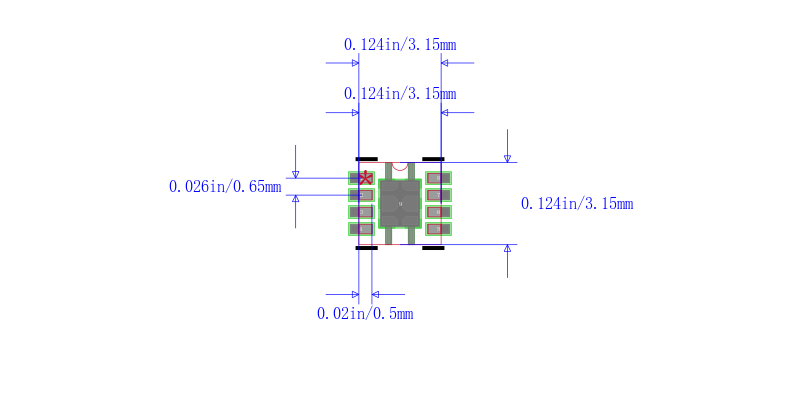

封装 VDFN-8
封装 VDFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73730DRBR TI 德州仪器 | 当前型号 | 当前型号 |
TPS73730DRBT 德州仪器 | 完全替代 | TPS73730DRBR和TPS73730DRBT的区别 |
