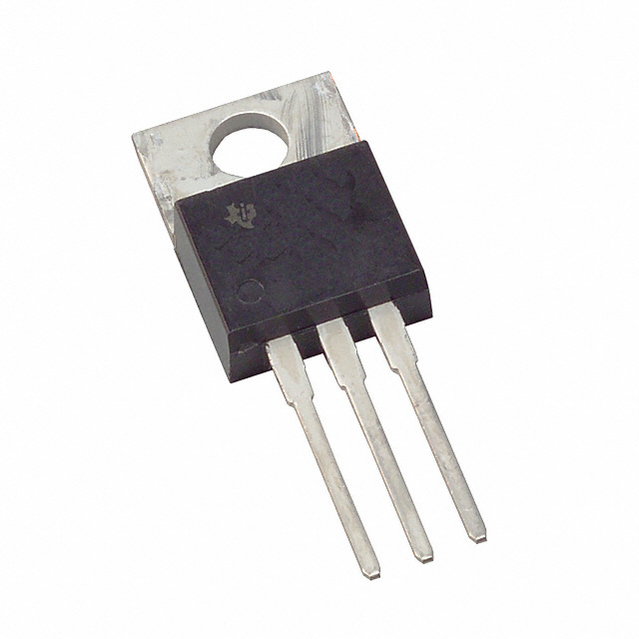

固定电压稳压器的SCSI有源终端 FIXED-VOLTAGE REGULATORS FOR SCSI ACTIVE TERMINATION
PMIC - 稳压器 - 线性 正 固定 1 输出 620mA TO-220-3
立创商城:
TL-SCSI285KCSE3
得捷:
IC REG LIN 2.85V 620MA TO220-3
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO TL-SCSI285KCSE3 linear regulator from Texas Instruments. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.62 A. Using the part will provide the power your application needs by requiring a voltage only of 3.55 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 2.85 V, this is power management at its best. Users like the load regulation of 30mV and line regulation of 15mV. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has an operating temperature range of 0 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.7@500mA|0.8@620mA V.
安富利:
LDO Regulator Pos 2.85V 0.62A 3-Pin3+Tab TO-220 Tube
Verical:
LDO Regulator Pos 2.85V 0.62A 3-Pin3+Tab TO-220 Tube
德州仪器TI:
Not for TI.com, Legacy: FIXED-VOLTAGE REGULATORS FOR SCSI ACTIVE TERMINATION
输出接口数 1
输入电压DC 5.50V max
输出电压 2.85 V
输出电流 620 mA
静态电流 2 mA
输出电容类型 Tantalum
跌落电压 800 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 3.55 V
输出电流Max 0.62 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±1 %
输入电压 3.55V ~ 5.5V
安装方式 Through Hole
引脚数 3
封装 TO-220-3
封装 TO-220-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TL-SCSI285KCSE3 TI 德州仪器 | 当前型号 | 当前型号 |
TL-SCSI285KC 德州仪器 | 类似代替 | TL-SCSI285KCSE3和TL-SCSI285KC的区别 |
TL-SCSI285KCE3 德州仪器 | 功能相似 | TL-SCSI285KCSE3和TL-SCSI285KCE3的区别 |
