SUAL脉宽调制控制电路 SUAL PULSE-WIDTH-MODULATION CONTROL CIRCUITS
description
The TL1451A incorporates on a single monolithic chip all the functions required in the construction of two pulse-width-modulation PWM control circuits. Designed primarily for power-supply control, the TL1451A contains an on-chip 2.5-V regulator, two error amplifiers, an adjustable oscillator, two dead-time comparators, undervol tage lockout circuitry, and dual common-emitter output transistor circuits.
Complete PWM Power Control Circuitry
Completely Synchronized Operation
Internal Undervoltage Lockout Protection
Wide Supply Voltage Range
Internal Short-Circuit Protection
Oscillator Frequency...500 kHz Max
Variable Dead Time Provides Control Over Total Range
Internal Regulator Provides a Stable 2.5-V Reference Supply
Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control / Print Support
Qualification to Automotive Standards
频率 500 kHz
电源电压DC 3.60V min
输出接口数 2
输入电压DC 3.60 V
输出电压 50 V
输出电流 0.02 A
耗散功率 838 mW
静态电流 1.70 mA
跌落电压 200 mV
调节输出数 2
开关频率 1kHz ~ 500kHz
过温保护 No
拓扑结构 Buck, Boost, Flyback
工作温度Max 85 ℃
工作温度Min -20 ℃
输入电压 3.6V ~ 50V
安装方式 Surface Mount

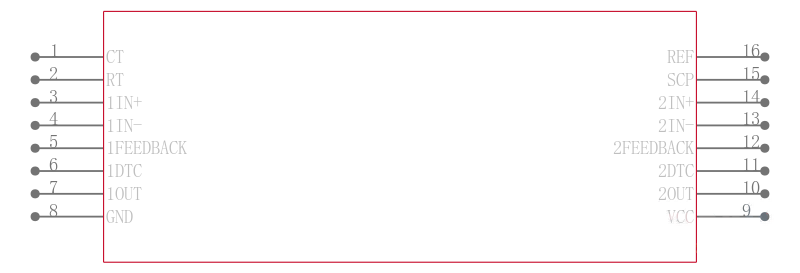

引脚数 16

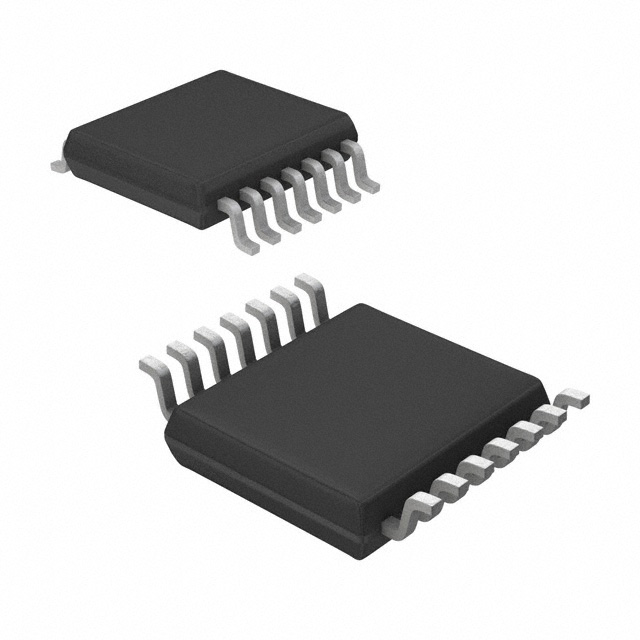

封装 TSSOP-16
封装 TSSOP-16
工作温度 -20℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TL1451ACPWG4 TI 德州仪器 | 当前型号 | 当前型号 |
TL1451ACPW 德州仪器 | 完全替代 | TL1451ACPWG4和TL1451ACPW的区别 |
TL1451ACDBR 德州仪器 | 完全替代 | TL1451ACPWG4和TL1451ACDBR的区别 |
TL1451ACPWR 德州仪器 | 完全替代 | TL1451ACPWG4和TL1451ACPWR的区别 |
